Technical data
Protection degree
IP45
Nominal voltage
110-240 V AC
Mains frequency
50-60 Hz
Operating voltage
4.5 V DC
Power consumption
< 0.5 W
Flow pressure
1-8 bar
Maximum test pressure, water
16 bar
Maximum test pressure, air / inert gas
3 bar
Relative humidity
< 100 %
Maximum operating temperature, water
30 °C
Flow rate at 1 bar without flow limiter
0.3 l/s
Flow rate at 1 bar with flow limiter
0.18 l/s
Calculated flow rate
0.23 l/s
Minimum flow pressure for calculated flow rate
1 bar
Interval flush, adjustment range
1-168 h
Interval flush, factory setting
24 h
Interval flush time, adjustment range
3–180 s
Interval flush time, factory setting
5 s
Detection time, adjustment range
3-15 s
Detection time, factory setting
7 s
Flush time, adjustment range
1-15 s
Flush time, factory setting
7 s
Application purposes
For automatic flush actuation of urinals
For Geberit frames for urinal with front actuation
For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009)
Characteristics
Cover plate with securing bar
Reliable IR distance detection
Self-adjusting IR sensor
Infrared user detection with background fade-out
Water-saving hybrid mode can be set
Flush time can be set
Adjustable interval flush
Dynamic flushing time adjustment
Preflush can be set
Can be switched to operation with covered urinal
Power supply via mains connection
Ready for operation upon connection to mains
Power supply unit with LED display
Power failure control unit
Valve-closing function when power fails
One-time flush after activation of the power supply
Functions can be set and queried with the Geberit Service Handy
Device settings and operation with mobile device via integrated Bluetooth® interface
Compatible with Geberit Control App
Wired networkable with Geberit gateway via GEBUS converter
Wirelessly connectable with Geberit Gateway via Bluetooth®
Compatible with Geberit Connect
Flush actuation can be deactivated
Flush volume can be reduced to 0.5 l per flush with regulating screw of installation set
Scope of delivery

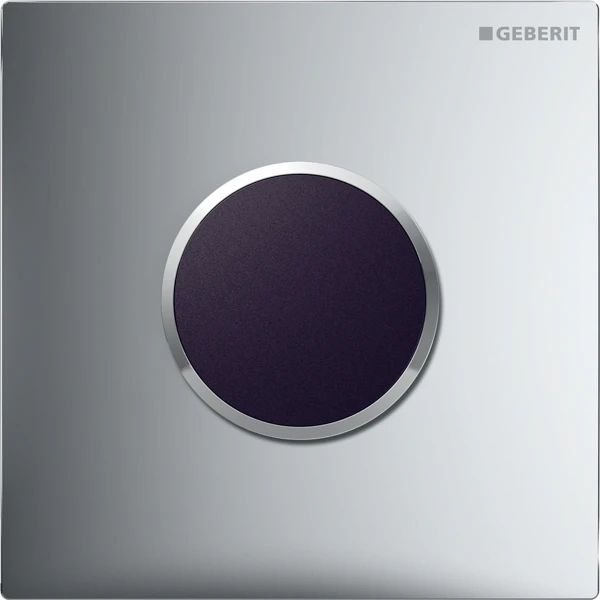

Type 10 cover plate with IR window
Infrared control, premounted on mounting frame
Solenoid valve
Power supply unit
Fastening material
