Protection degree
IP45
Nominal voltage
110–240 V AC
Mains frequency
50–60 Hz
Operating voltage
4.5 V DC
Flow pressure
1–8 bar
Test pressure, water max.
16 bar
Test pressure, air / inert gas max.
3 bar
Operating temperature, water max.
30 °C
Flow rate at 1 bar without flow limiter
0.3 l/s
Flow rate at 1 bar with flow limiter
0.18 l/s
Minimum flow pressure
1 bar
Relative humidity
≤ 100 %
Calculated flow rate
0.23 l/s
Interval flush, adjustment range
1–168 h
Interval flush, factory setting
24 h
Interval flush time, adjustment range
3–180 s
Interval flush time, factory setting
5 s
Detection time, adjustment range
3–15 s
Detection time, factory setting
7 s
Flush time, adjustment range
1–15 s
Flush time, factory setting
7 s
Button shape
round
Click on an application purpose to search more products
For automatic flush actuation of urinals
For Geberit frames for urinal with front actuation
For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009)
Click on a characteristic to search more products
Cover plate with securing bar
Reliable IR distance detection
Self-adjusting IR sensor
Infrared user detection with background fade-out
Water-saving hybrid mode can be set
Flush time can be set
Adjustable interval flush
Dynamic flushing time adjustment
Preflush can be set
Can be switched to operation with covered urinal
Power supply via mains connection
Ready for operation upon connection to mains
Power supply unit with LED display
Power failure control unit
Valve-closing function when power fails
One-time flush after activation of the power supply
Functions can be set and queried with the Geberit Service Handy
Device settings and operation with mobile device via integrated Bluetooth® interface
Compatible with Geberit Control App
Wired networkable with Geberit gateway via GEBUS converter
Wirelessly connectable with Geberit Gateway via Bluetooth®
Compatible with Geberit Connect
Flush actuation can be deactivated
Flush volume can be reduced to 0.5 l per flush with regulating screw of installation set

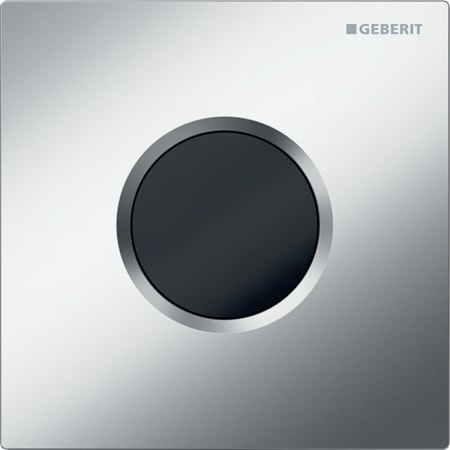

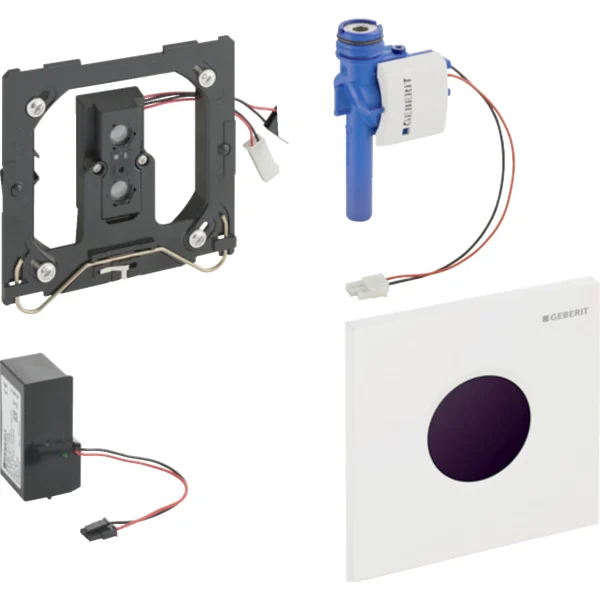

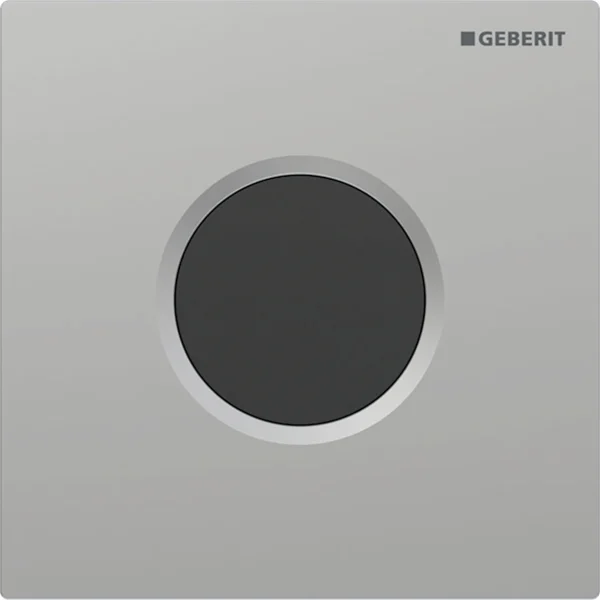

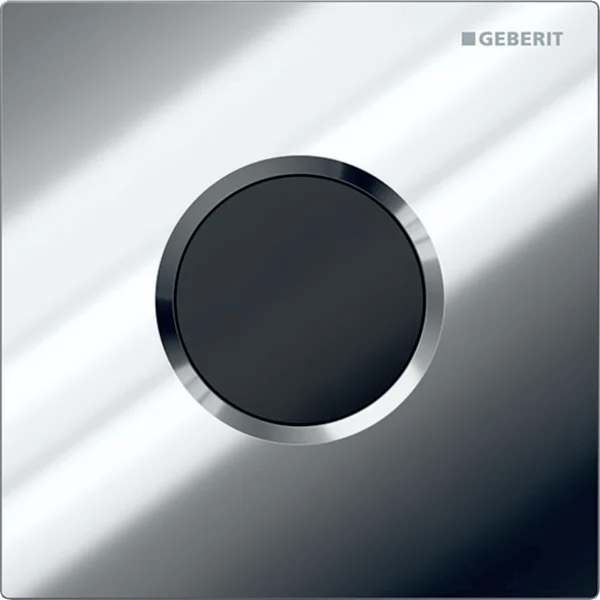

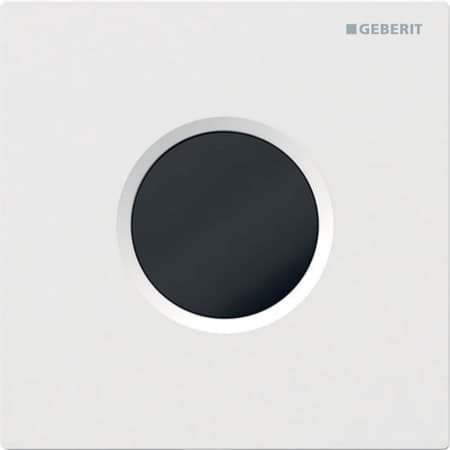

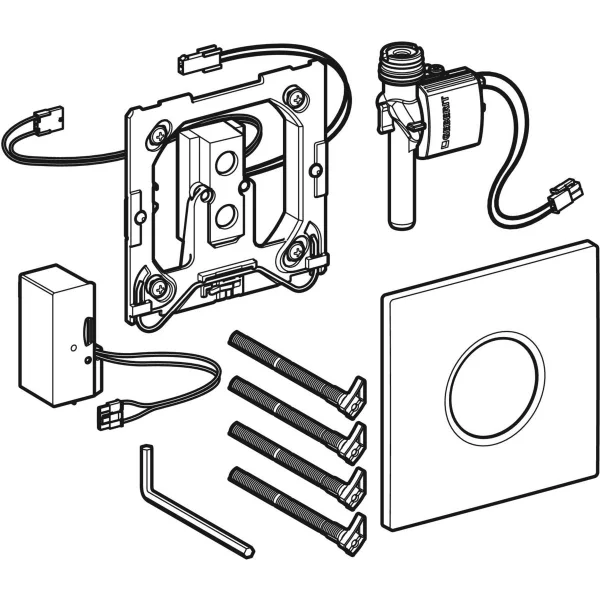

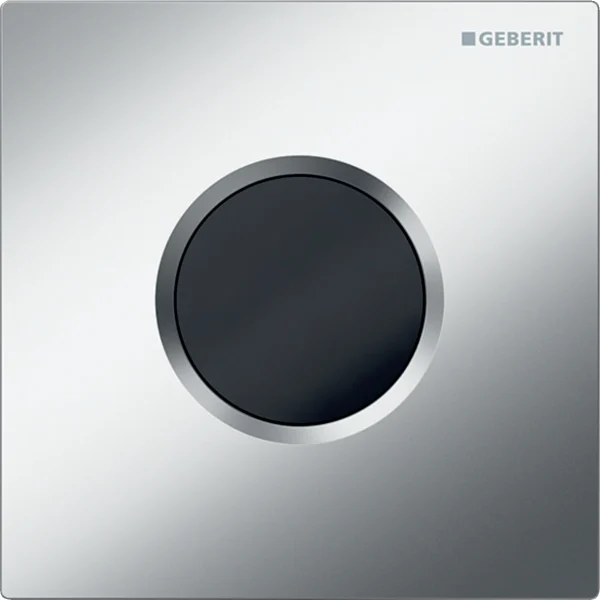

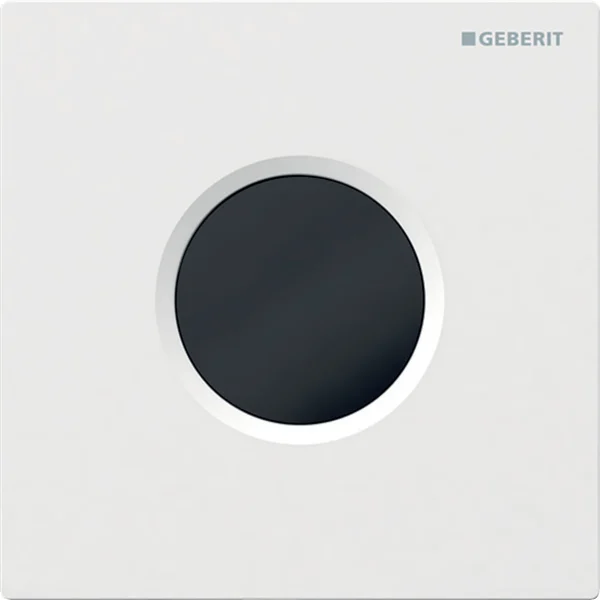

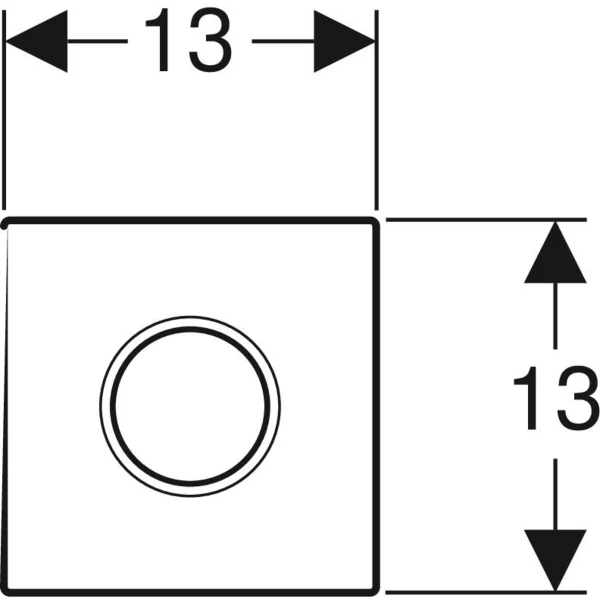

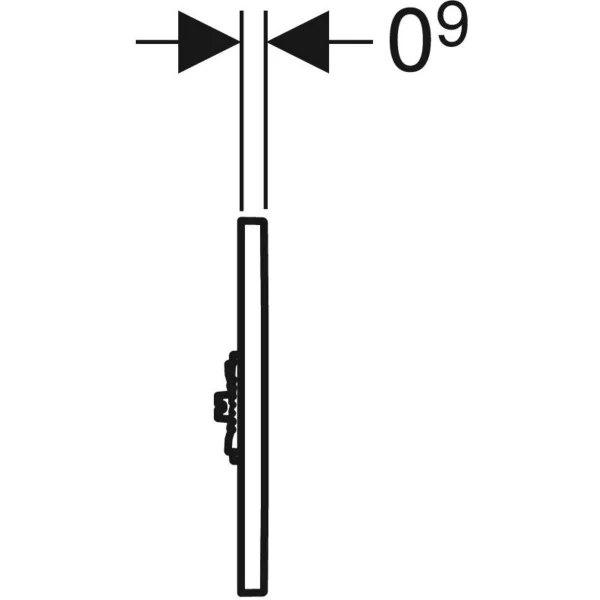

Type 01 cover plate, IR window, round
Mounting frame
Infrared control, premounted on mounting frame
Solenoid valve
Power supply unit
Fastening material
Colour / surface: matt chrome / easy-to-clean coated
Product material: Die-cast zinc
Power consumption: ≤ 0.5 W
