Protection class
IPX4
Rated voltage
110-240 V AC
Operating voltage
4.5 V DC
Mains frequency
50-60 Hz
Flow pressure
100-800 kPa
Test pressure water max.
1600 kPa
Water temperature max.
30 °C
Flow rate at 1 kPa with flow limiter
0.18 l/s
Calculated flow rate
0.23 l/s
Minimum flow pressure for calculated flow rate
100 kPa
Interval flush Setting range
1-168 h
Interval flush Factory setting
24 h
Interval flush time Setting range
3-180 s
Interval flush time Factory setting
5 s
Dwell time Setting range
3-15 s
Dwell time Factory setting
7 s
Flush time Setting range
1-15 s
Flush time Factory setting
7 s
For automatically flushing urinals
For concealed flush actuation of urinals
For installation in Geberit elements for urinals with urinal flush control for concealed installation
For installation in body shell sets for Geberit urinal flush controls (from year of manufacture 2009)
For urinal installations with inlet from the rear and outlet to the rear
Compatible with Geberit Control App
Device settings and operation with mobile device via integrated Bluetooth® interface
Function statistics can be called up via the Geberit Control app
Power supply via mains connection
Integrated power supply unit with LED display
Control with LED display
Adjustable flush time
Interval flush adjustable
Dynamic flush time adjustment
Adjustable water-saving hybrid mode
Ready for operation after mains connection
Single flush after activating the power supply
Flush volume can be reduced to 0.5 litres per flush using the throttle screw on the body kit
Vandal-proof
Power failure control
Valve closure function in the event of a power failure
Brightness sensor for deactivating the control unit when the urinal is dismantled

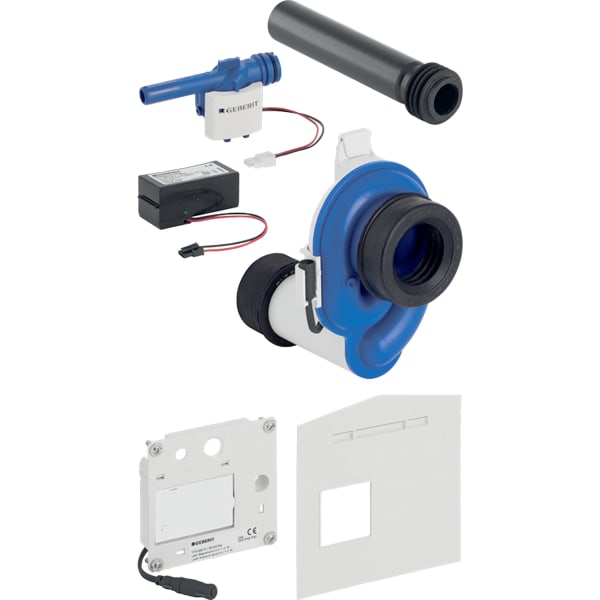

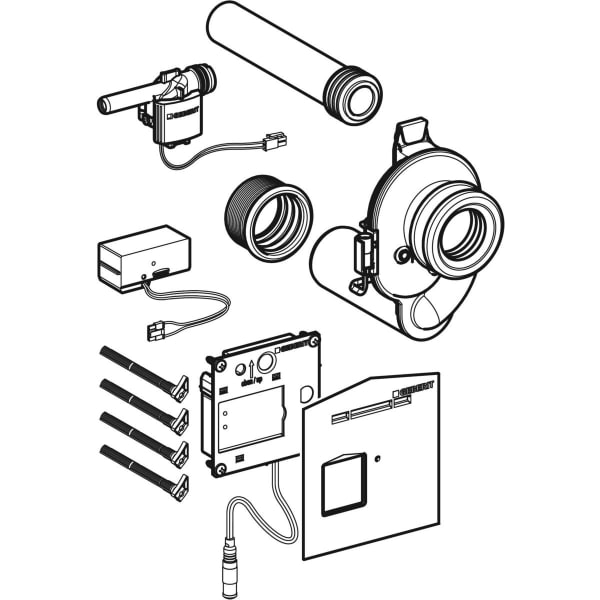

Control electronics
Urinal odour trap with sensor
Splash guard
Solenoid valve
Power supply unit
Connection piece
Fixing material
Power consumption: ≤ 0.5 W
PU1: 1 pc.
