Product material
PE-RT II / Al / PE-RT II
Surface roughness
7 µm
Thermal expansion
0.026 mm/(m·K)
Thermal conductivity, pipe
0.41 W/(m·K)
Material, insulation
PE soft foam
Thermal conductivity, insulation
0.04 W/(m·K)
Water vapour diffusion resistance, outer skin of insulation
7000 µ
For Geberit FlowFit
For Geberit PushFit
For cold and hot potable water
For cooling and heating water without antifreeze agent
For cooling and heating water with antifreeze agent
For service water and process water
For treated water
For rainwater with a pH value of > 6.0
For seawater
For extinguishing water (wet)
For extinguishing water (wet/dry, dry)
For chemicals and technical liquids
For compressed air (oil purity class 0–3)
For negative pressure
For inert gases (e.g. nitrogen)
For technical building systems, industry and shipbuilding
Application overview – Geberit PushFit
Application overview – Geberit FlowFit
Inherently stable
Can be bent by hand
Media pipe forms a barrier against diffusion
Media pipe, silver grey RAL 7001 exterior
Closed-cell insulation, blue protective foil
HCFC-free and HFC-free insulation
Fire behaviour class E according to EN 13501-1
Pipe end with transparent protection plug
Valid for system: Geberit FlowFit

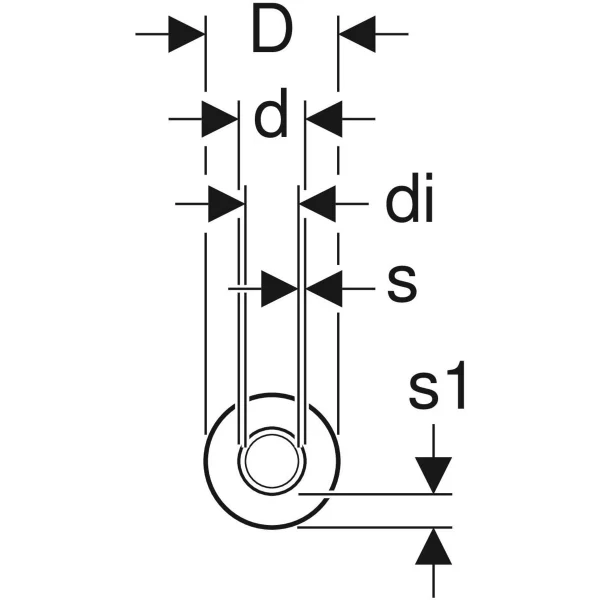

DN: 25
d, ø: 32 mm
Insulation: 13 mm
di, ø: 26.4 mm
D: 5.8 cm
s1: 13 mm
s: 2.8 mm

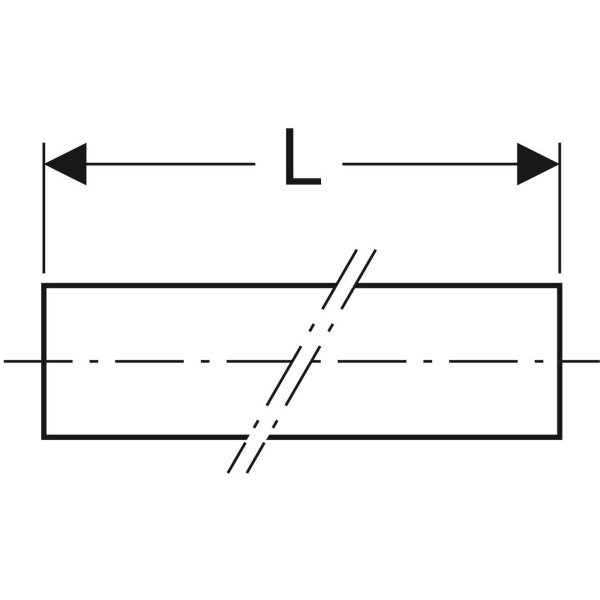

L: 25 m
