Mounting temperature
-10 - +40 °C
material
PP-MX
Thermal expansion
0.08 mm/(m-K)
Click on an application to search for other products
For draining waste water inside buildings
For buildings with increased sound insulation requirements
For Geberit Silent-Pro Carve branches with three sockets
For Geberit Silent-Pro double sockets
Click on a property to search for other products
With SuperTube technology
Highly sound-insulating

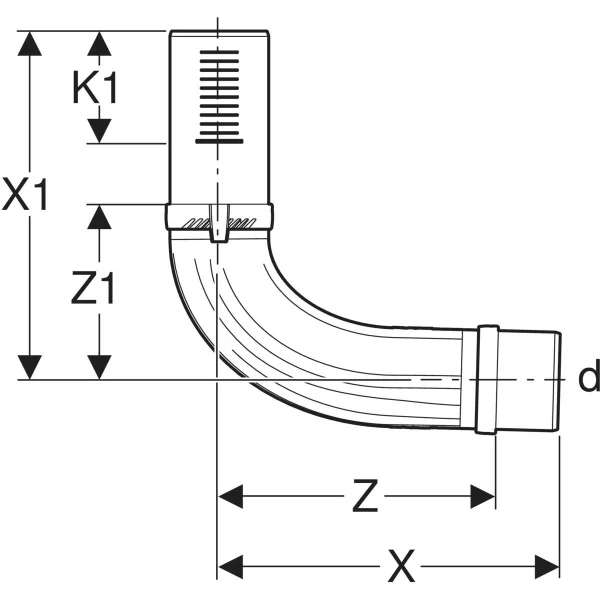

DN: 100
d, ø: 110 mm
arc: 90 °
X: 37.9 cm
X1: 39.1 cm
Z: 31.1 cm
Z1: 18.9 cm
K1 max.: 12.4 cm
PU1: 1 pc.
PU2: 5 pcs.
