Installation temperature
-10 – +40 °C
Product material
PP-MD
Thermal expansion
0.08 mm/(m·K)
Click on an application purpose to search more products
For draining off waste water within buildings
Click on a characteristic to search more products
Acoustically optimised
Swept entry
Seal made of EPDM

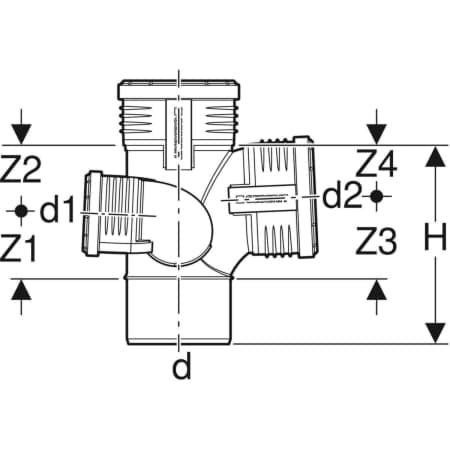

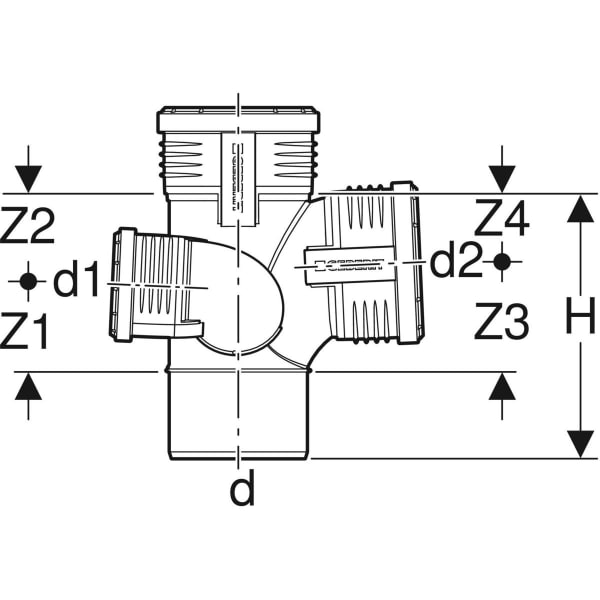

DN: 100 / 70
d, ø: 110 mm
d1, ø: 75 mm
d2, ø: 110 mm
arc: 87.5 °

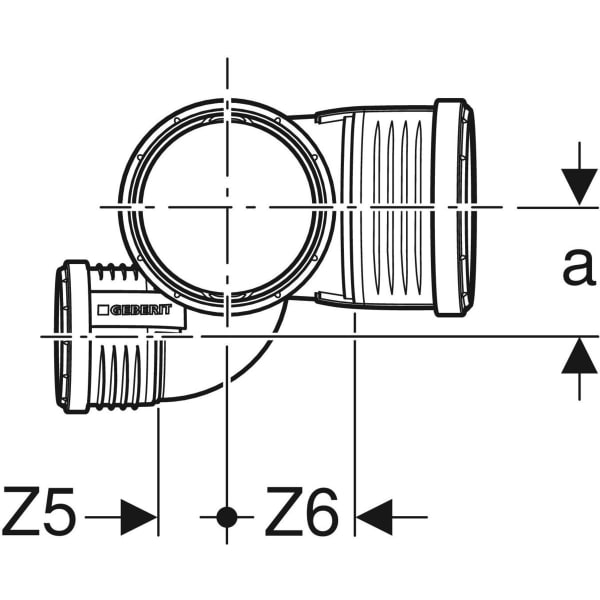

a: 9.2 cm
H: 21.1 cm
Z1: 6.7 cm
Z2: 7.6 cm
Z3: 8.2 cm
Z4: 6.1 cm
Z5: 4.4 cm
Z6: 7.7 cm
