Installation temperature
-10 – +40 °C
Product material
PP-MD
Thermal expansion
0.08 mm/(m·K)
Click on an application purpose to search more products
For draining off waste water within buildings
For connecting low-lying drains on shower elements
Click on a characteristic to search more products
Acoustically optimised
Swept entry
Seal made of EPDM

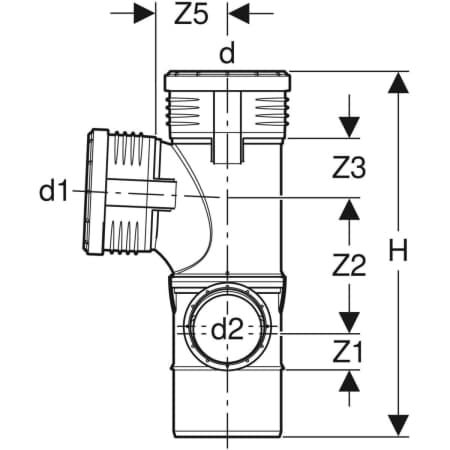

DN: 100 / 50
d, ø: 110 mm
d1, ø: 110 mm
d2, ø: 50 mm
arc: 87.5 °
H: 35 cm
Z1: 3.3 cm
Z2: 12.6 cm
Z3: 6.5 cm
Z4: 5.9 cm
Z5: 7.4 cm
