Storage temperature
≤ 40 °C
Product material
PE-S2
Thermal expansion
0.17 mm/(m·K)
Thermal conductivity, pipe
0.43 W/(m·K)
Click on an application purpose to search more products
For building drainage
For buildings with increased sound insulation requirements
Click on a characteristic to search more products
Abrasion resistant
Highly sound-insulating
UV-resistant

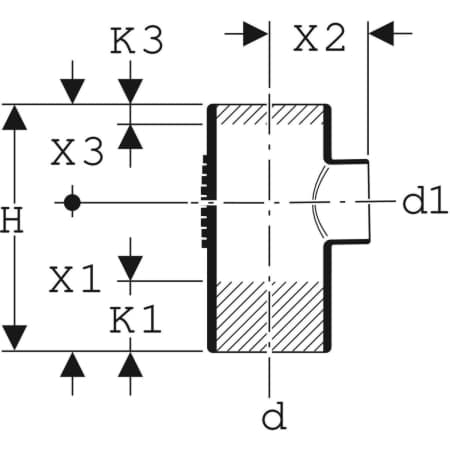

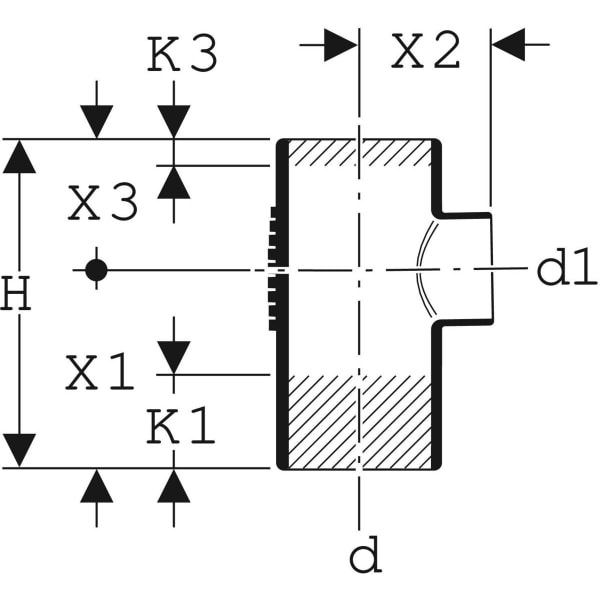

DN: 56
d, ø: 56 mm
d1, ø: 56 mm
arc: 88.5 °
H: 17.5 cm
X1: 10.5 cm
X2: 7 cm
X3: 7 cm
K1 max.: 4.5 cm
K3 max.: 0.5 cm
