Seal water height (mm)
50 mm
Click on an application to search for other products
For installation inside buildings
For drainage of Setaplano shower areas
For floor structures up to top edge of finished floor 11.5-16.5 cm
For fastening to Geberit installation frames for Setaplano shower areas
For use as a floor drain with horizontal outlet
Click on a property to search for other products
Quality-monitored in accordance with EN 274-3
Odour trap cup can be removed
Easy to clean

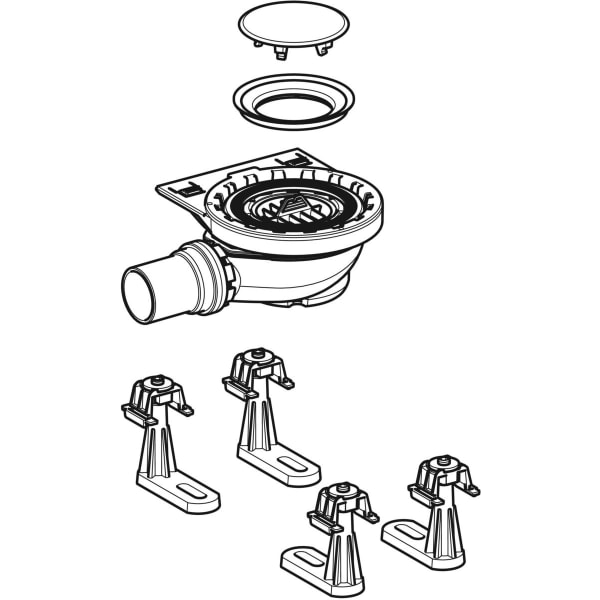

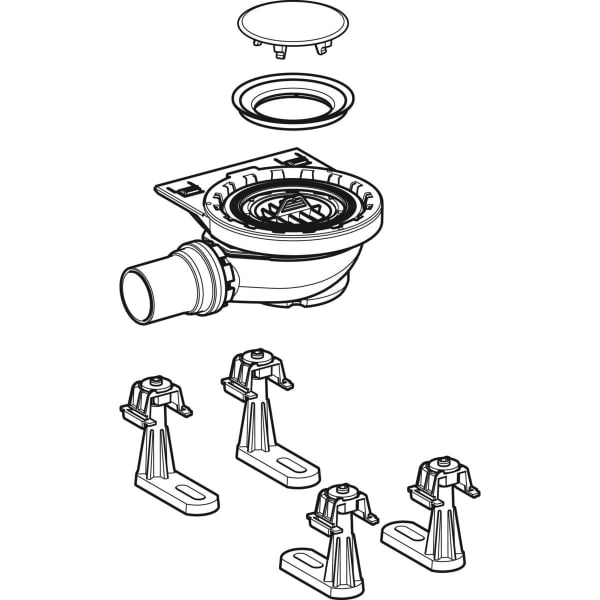

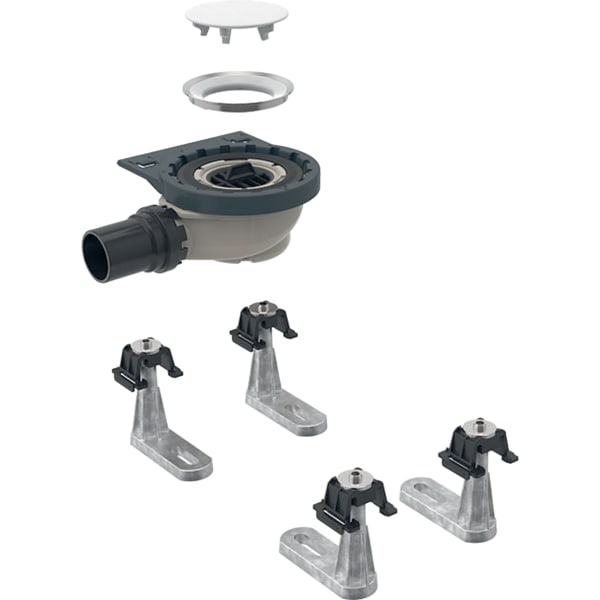

Shower tray drain ø 90 mm
Comb insert
Prefabricated set for Setaplano shower surface with drain cap made of solid surface material
PE-HD connection piece
Retaining ring for installation frame
Feet for installation frame
Fixing material
Geberit Setaplano rectangular shower surface
Installation frame for Setaplano shower surface

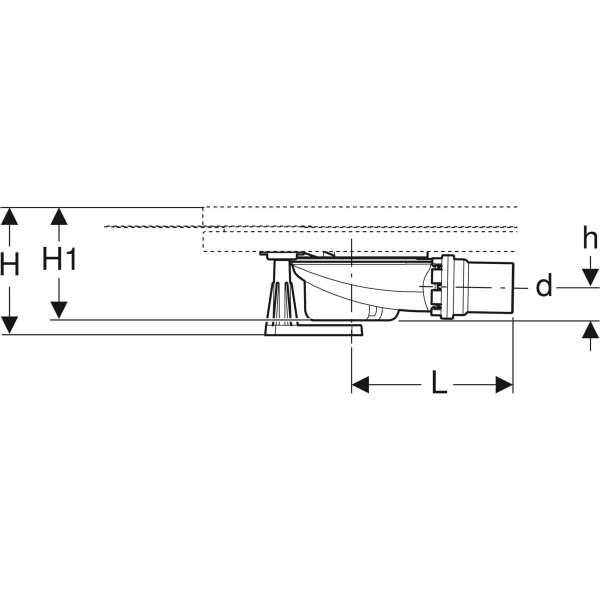

DN: 50
d, ø: 50 mm
Drainage capacity: 0.65 l/s
L: 16.3 cm
H: 11.5-16.5 cm
H1: 11.5 cm
h: 3.3 cm
PU1: 1 pc.
PU2: 60 pcs.
