Protection class
IP45
Small flush volume Setting range
0.5 l
Material
Sanitary ceramic
Click on an application to search for other products
For waterless operation, can be converted for operation with flushing
For Geberit mounting elements for urinal with or for integrated control unit
Click on a property to search for other products
Without urinal flush control
Can be converted to operation with flush by adding a urinal flush control unit
Without flush rim
Wall-hung
Easy to maintain and clean
Urinal flush control can be fitted from the front without removing the ceramic appliance
Odour trap can be replaced from above without removing the ceramic appliance
Odour trap holder height-adjustable without tools
Cleaning the drainage system without removing the ceramic appliance
Flushing of the urinal ceramic appliance with 0.5 litres per flush guaranteed, in compliance with EN 13407
Fastening material
Hybrid odour trap
Urinal odour trap with suction function
Drain strainer
Drain set
Inlet set
Pressure reducer
Colour / surface: white

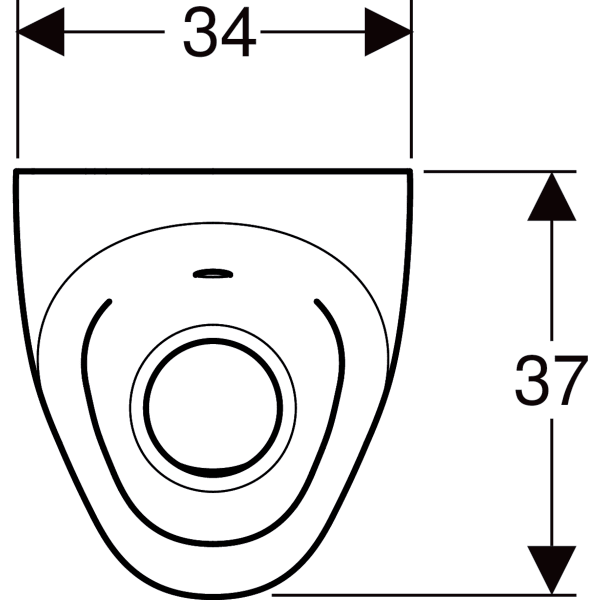

W: 34 cm

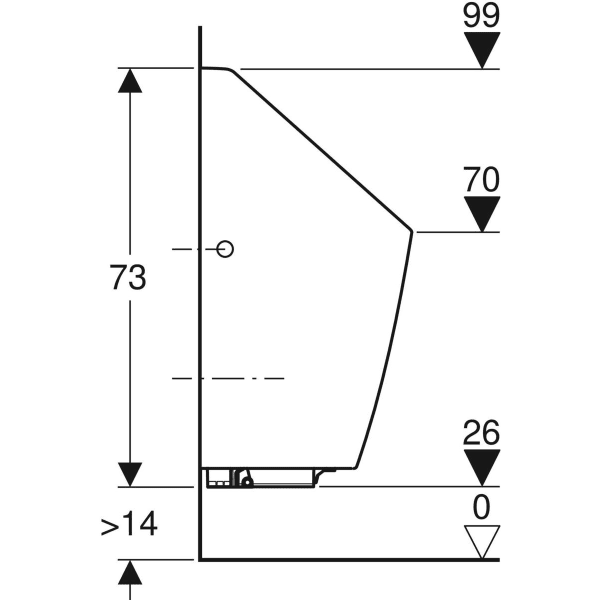

H: 73 cm
D: 37 cm
Inlet: rear
Outlet: to the rear
Target marking: no
PU1: 1 pc.
