Material
PVDF
Click on an application to search for other products
For hot and cold drinking water
For cooling and heating water without antifreeze
For cooling and heating water with antifreeze
For service and process water
For treated water
For rainwater with a pH value > 6.0
For seawater
For chemicals and technical fluids
For compressed air (purity class oil 0-3)
For negative pressure
For inert gases (e.g. nitrogen)
For building services, industry and shipbuilding
Overview of applications - Geberit PushFit
Click on a property to search for other products
Push-fit indicator green
O-ring made of EPDM
Plug connector with transparent protective cap

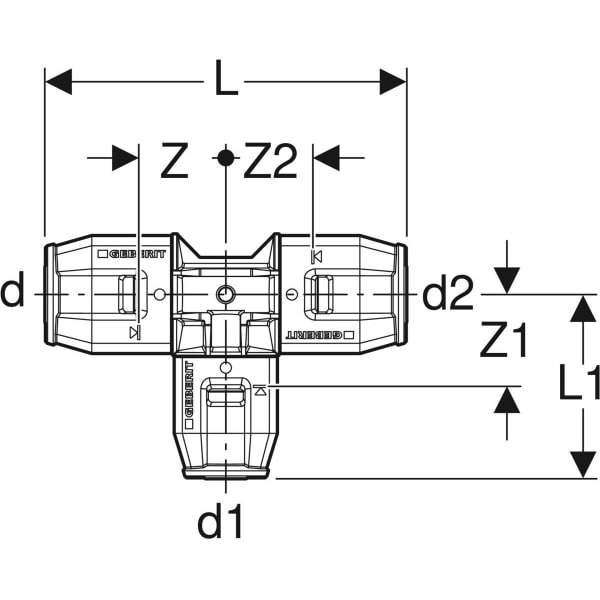

DN: 15 / 12
d, ø: 20 mm
d1, ø: 20 mm
d2, ø: 16 mm
arc: 90 °
L: 10.4 cm
L1: 5.3 cm
Z: 2.7 cm
Z1: 2.7 cm
Z2: 2.6 cm
PU2: 10 pcs.
PU3: 30 pcs.
