Battery type
Alkaline (1.5 V AA)
Service life of supplied battery
2 years
Protection class
IP45
Operating voltage
3 V DC
Power consumption stand-by max.
0.1 W
Flow pressure
100-800 kPa
Test pressure water max.
1600 kPa
Water temperature max.
30 °C
Small flush volume setting range
0.5 l
Flow rate at 1 kPa with flow limiter
0.18 l/s
Minimum flow pressure for calculation flow rate
100 kPa
Calculation flow rate
0.22 l/s
Interval flushing Setting range
1-168 h
Interval flush Factory setting
24 h
Interval flush time Setting range
3-180 s
Interval flush time Factory setting
5 s
Dwell time Setting range
3-15 s
Dwell time Factory setting
7 s
Flush time Setting range
1-15 s
Flush time Factory setting
7 s
Material
Sanitary ceramic
Click on an intended use to search for other products
For operation with automatic, water-saving flush
For Geberit mounting elements for urinal with or for integrated control unit
Click on a feature to search for other products
IR user recognition with leg recognition
Flush rimless
Wall-hung
Easy to maintain and clean
Urinal flush control can be replaced from the front without removing the ceramics
Spray head can be replaced from the front without removing the ceramic appliance
Odour trap can be replaced from above without removing the ceramic appliance
Odour trap holder height adjustable without tools
Cleaning the drainage system without removing the ceramic
Adjustable water-saving hybrid mode
Adjustable flush time
Flush time can be set manually
Interval flush adjustable
Dynamic flush time adjustment
Adjustable pre-rinse
Battery power supply
Low battery warning
Valve closing function when battery is empty
Functions can be set and queried with Geberit service mobile phone
Device settings and operation with mobile device via integrated Bluetooth® interface
Compatible with Geberit Control App
Can be wired networked with Geberit Gateway via GEBUS converter
Can be networked wirelessly with Geberit Gateway via Bluetooth®
Compatible with Geberit Connect
Flush activation can be deactivated
Flush volume can be reduced to 0.5 litres per flush via flush time
Rinsing of the urinal ceramic appliance with 0.5 litres per flush guaranteed, in compliance with EN 13407
Fitting group II in accordance with DIN 4109
Urinal control with solenoid valve
Battery compartment
2 alkaline manganese batteries type AA 1.5 V
Fixing material
Urinal odour trap with suction function
Drain strainer
Drain set
Inlet set
Pressure reducer
Colour / surface: white

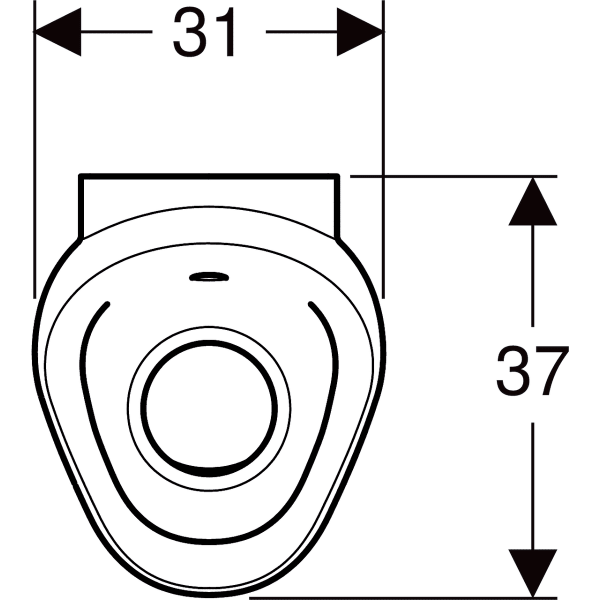

W: 31 cm

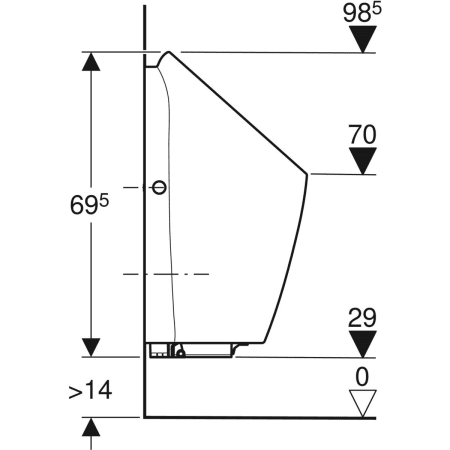

H: 69.5 cm
D: 37 cm
Power consumption: ≤ 0.5 W
Inlet: at the back
Outlet: to the rear
Target marking: no
PU1: 1 pc.
