material
Steel
Click on an application to search for other products
For building drainage
For combining with Geberit PE welding neck collars
Click on a property to search for other products
Plastic coated

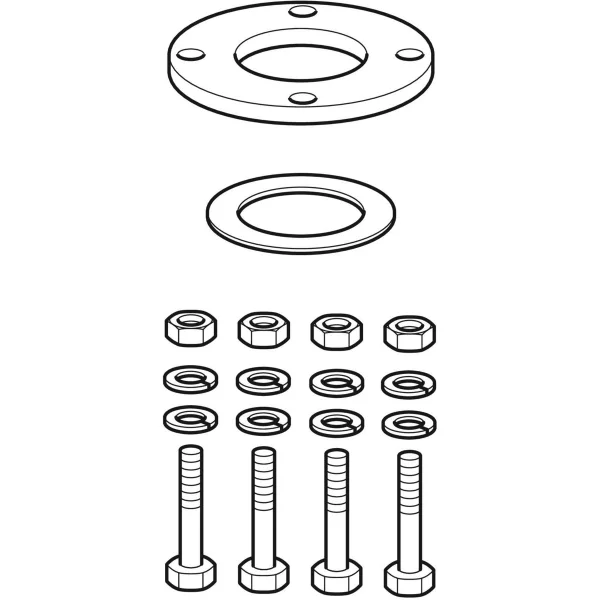

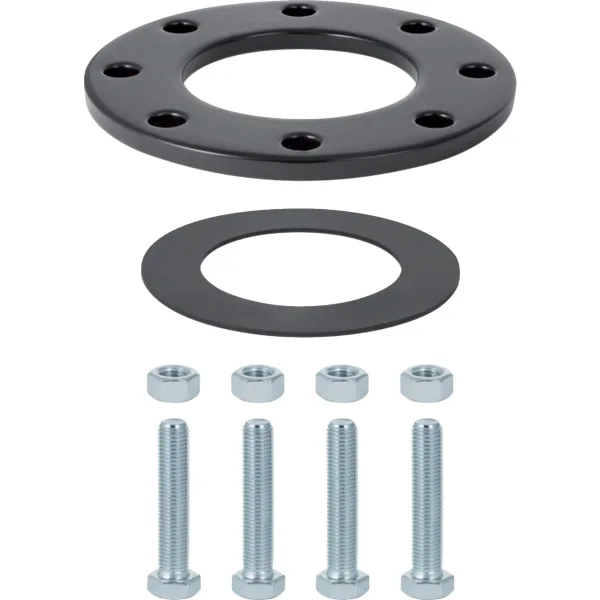

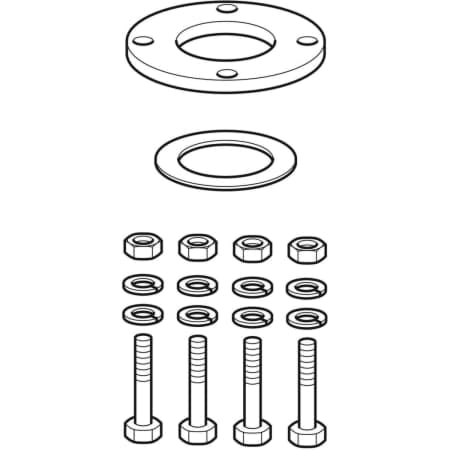

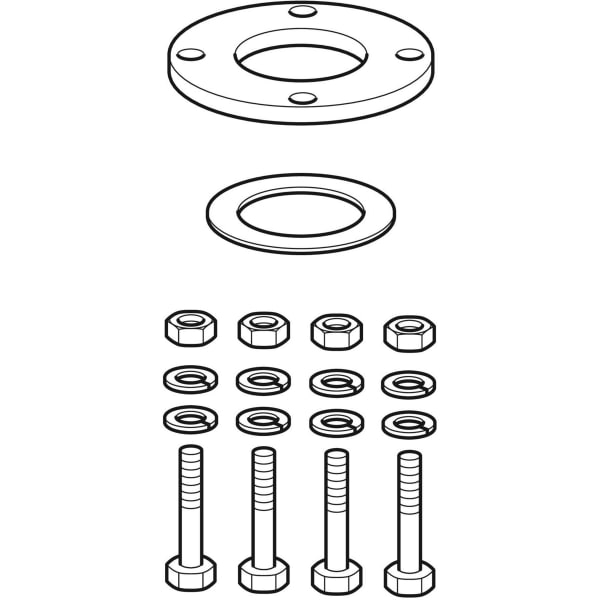

Flange
EPDM gasket
Galvanised screw set

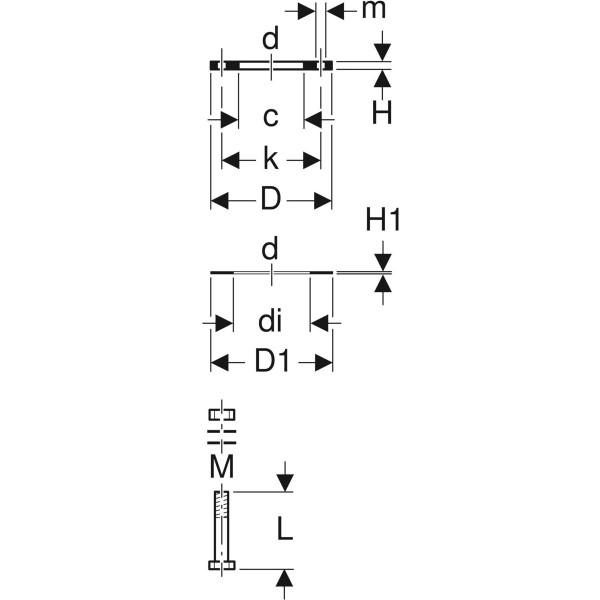

DN: 70
d, ø: 75 mm
M: 16 mm
di, ø: 69 mm
D: 18.5 cm
D1: 12.7 cm
k: 145 mm
c: 78 mm
m: 18 mm
L: 7 cm
H: 1.2 cm
H1: 0.3 cm
n: 4 pcs.
PN: 10 bar
PU1: 1 pc.
