Operating pressure
0.5–10 bar
Differentiated pressure CW/WW max.
1.5 bar
Test pressure, water max.
16 bar
Test pressure, air / inert gas max.
3 bar
Ambient temperature
1–40 °C
Storage temperature
-20 – +70 °C
Operating temperature, water max.
60 °C
Operating temperature, water, short-term max.
90 °C
Flow rate at 3 bar
5 l/min
Minimum flow pressure
0.5 bar
Calculated flow rate
0.07 l/s
Product material
Brass / die-cast zinc
Click on an application purpose to search more products
For extracting tap water
For installation in Geberit elements for Geberit ONE wall-mounted taps with concealed function box
For connecting cold and hot water
For panelling thickness 10–60 mm
Click on a characteristic to search more products
Two-handle mixer
Left turn handle for temperature setting, right turn handle for volumetric flow rate regulation
Volume flow control via tap aerator
With integrated check valve
With connection hoses, lenght 105.5 cm

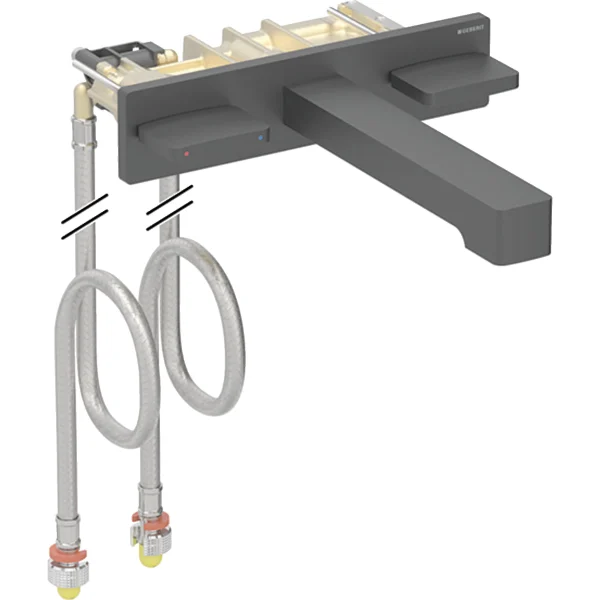

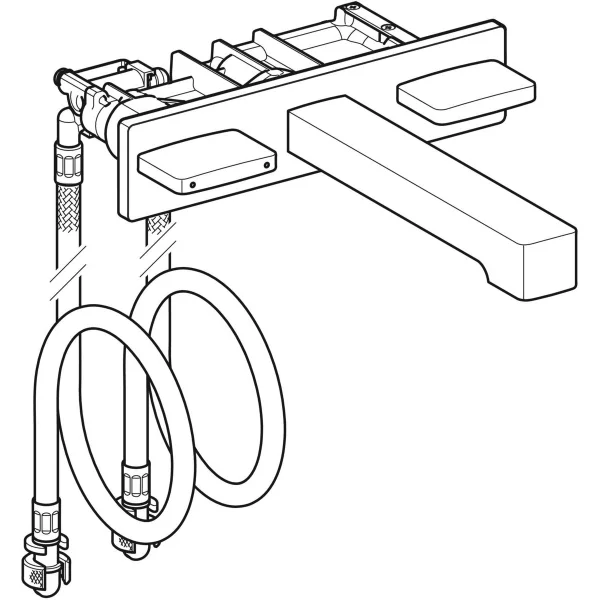

Washbasin tap
Valve block with connection hoses
Fastening material
Geberit Duofix frame washbasin, 112–130 cm, Geberit ONE wall-mounted tap with concealed function box
Colour / surface: black matt / easy-to-clean coated
Mixer: with mixer

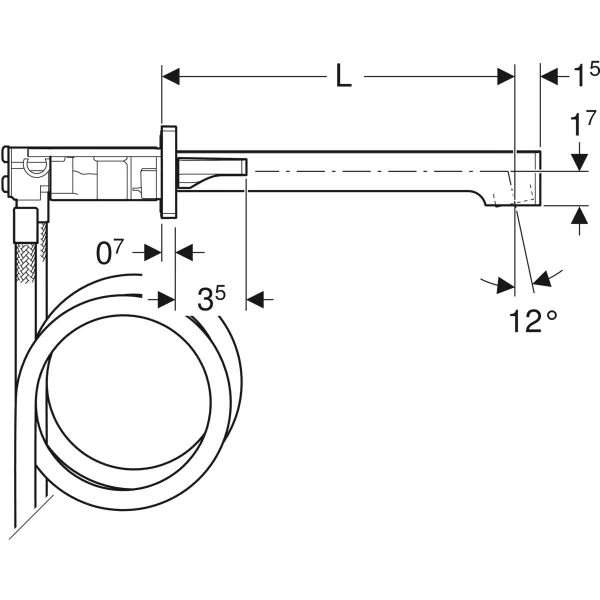

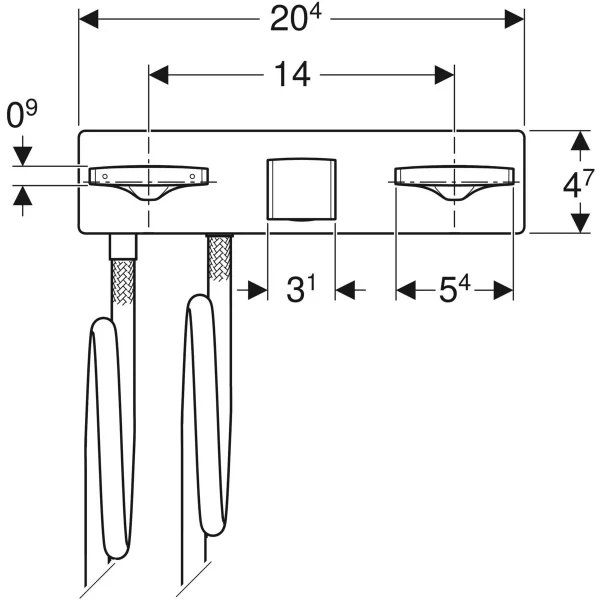

L: 22 cm
B: 20.4 cm
H: 4.7 cm
