Protection degree
IPX4
Nominal voltage
100–240 V AC
Operating voltage
12 V DC
Mains frequency
50–60 Hz
Power consumption standby max.
0.5 W
Flow pressure
0.1–10 bar
Operating temperature, water max.
25 °C
Flush volume, factory setting
6 / 3 l
Flush volume large, adjustment range
4–6 l
Flush volume small
3 l
Flow rate at 3 bar
9.6 l/min
Minimum flow pressure
0.5 bar
Calculated flow rate
0.11 l/s
Light colour
2200–4000 K
Click on an application purpose to search more products
For renovations, conversions and new buildings
For wall inlets with inlet height > 23 cm
For replacing low-level exposed cisterns
For replacing half-high level exposed cisterns
For replacing wall-hung WCs with close-coupled exposed cistern
For replacing wall-hung WCs with pressure flushing valve
For replacing wall-hung WCs with concealed cistern with maximum service opening height < 109 cm
For Geberit AquaClean WC complete solutions
For connecting Geberit AquaClean WC enhancement solutions, with accessories
For mounting on finished floors
For installation in front of drywalls or solid walls
For compensating the offset between WC connections and wall drains using a stepped straight connector for wall-hung WCs
Click on a characteristic to search more products
Dual flush
Soft-touch buttons for flush actuation
Settings can only be changed with the Geberit Home App
User detection range can be set
Odour extraction with ceramic honey comb filter can be activated
Odour extraction unit with run-on function
Ceramic honeycomb filter for odour neutralisation can be replaced without tools
Adjustable interval flush
With ComfortLight
Lighting mood infinitely adjustable from orientation light to daylight
Light colour continuously adjustable from warm white to cool white
DALI-compatible control
Operation with extra-low voltage, no mains voltage in cistern
Mains connection with flexible three-core sheathed cable
Water supply connection on the rear centre
Water supply connection on the left/right possible with accessories
Water supply connection on the bottom
Compensation of dimensional tolerances possible
Height-adjustable up to 7 cm
Fastening height WC ceramic appliance 35 ± 1 cm
Cistern, fully insulated against condensation
Side cladding made of aluminium brushed
Self-supporting
Water supply connection set with 2 angle stop valves, 1/2"
Flush bend extension 160 mm
Sleeve made of EPDM, ø 44 / 55 mm
Straight connector made of PE-HD, ø 90 mm
Adaptor socket made of PE-HD, ø 90 / 110 mm
2 threaded rods M12
Sound insulation set
Female socket for mains connection
Power supply unit
Base cover
Fastening material for drywall
Fastening material
Fastening material for installation in front of concealed cisterns
Colour / surface: Front cladding: white glass Side cladding: aluminium

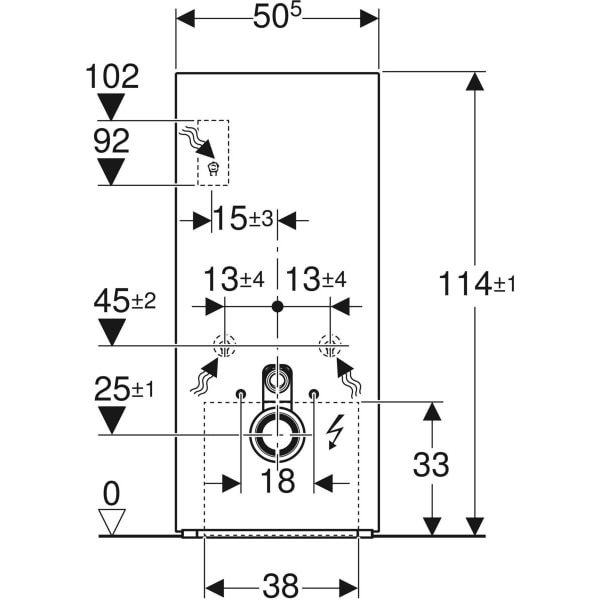

B: 50.5 cm
H: 114 cm

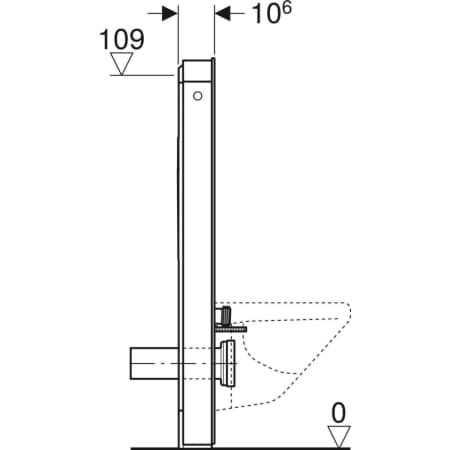

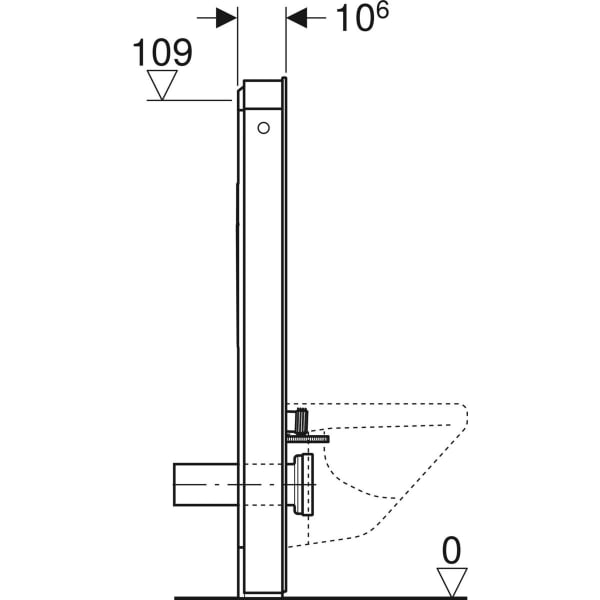

T: 10.6 cm
Protection class: I
Power consumption: 15 W
