Protection class
IPX4
Rated voltage
100-240 V AC
Operating voltage
12 V DC
Mains frequency
50-60 Hz
Power consumption stand-by max.
0.5 W
Flow pressure
10-1000 kPa
Water temperature max.
25 °C
Flush volume Factory setting
6 / 3 l
Large flush volume Setting range
4-6 l
Small flush volume
3 l
Flow rate at 3 bar
9.6 l/min
Minimum flow pressure for calculation flow rate
50 kPa
Calculation flow rate
0.11 l/s
Light colour
2200-4000 K
Click on an application to search for other products
For floor connections
For renovations, conversions and new builds
For wall connections with a drain height of 18 cm
For replacing low-hanging wall-mounted cisterns
For replacing floor-standing WCs with surface-mounted cisterns
For connecting Geberit AquaClean Tuma complete WC system for floor-standing WCs
For connecting Geberit AquaClean WC top units, with accessories
For installation on finished floors
For installation in front of drywall and solid walls
Click on a feature to search for other products
2-quantity flush
Compensation of construction tolerances possible
Cistern insulated against condensation
Brushed aluminium side panelling
Self-supporting
Soft-touch buttons for flush actuation
DALI-compatible control
Settings can only be changed with the Geberit Home app
With ComfortLight
Continuously adjustable lighting mood from orientation light to daylight
Interval flush adjustable
Adjustable detection range for user detection
Odour extraction with ceramic honeycomb filter can be activated
Odour extraction with run-on function
Ceramic honeycomb filter for odour neutralisation can be replaced without tools
Mains connection with three-core flexible sheathed cable
Light colour infinitely adjustable from warm white to cool white
Water connection on the side
Water connection set with R 1/2" angle valve
Flush elbow extension 160 mm
EPDM sleeve, ø 44 / 55 mm
P-connection bend made of PP, ø 90 mm
Transition sleeve made of PE-HD, ø 90 / 110 mm
Coupling socket for mains connection
Power supply unit
Fastening material
Plinth cover
Fastening material for drywall

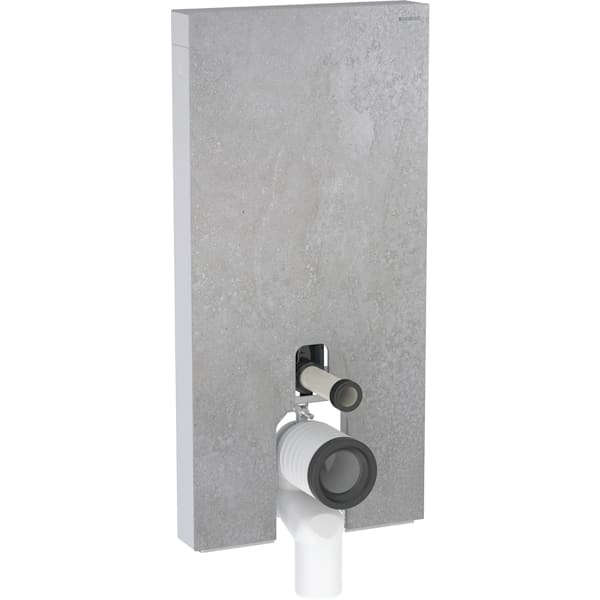

Colour / surface: Front cladding: Stoneware concrete look Side cladding: Aluminium
W: 48 cm
H: 101 cm
D: 10.6 cm
Protection class: I
Power consumption: 15 W
PU1: 1 pc.
