Product material
PVDF
Click on an application purpose to search more products
For cold and hot potable water
For cooling and heating water without antifreeze agent
For cooling and heating water with antifreeze agent
For service water and process water
For treated water
For rainwater with a pH value of > 6.0
For seawater
For chemicals and technical liquids
For compressed air (oil purity class 0–3)
For negative pressure
For tool-free connection to elements, mounting plates and connections with male thread MF 1/2"
For technical building systems, industry and shipbuilding
Application overview – Geberit Mepla
Click on a characteristic to search more products
Leaky if unpressed
O-ring made of EPDM
Pressing nipple with transparent protective cap
MasterFix with blue protective cap

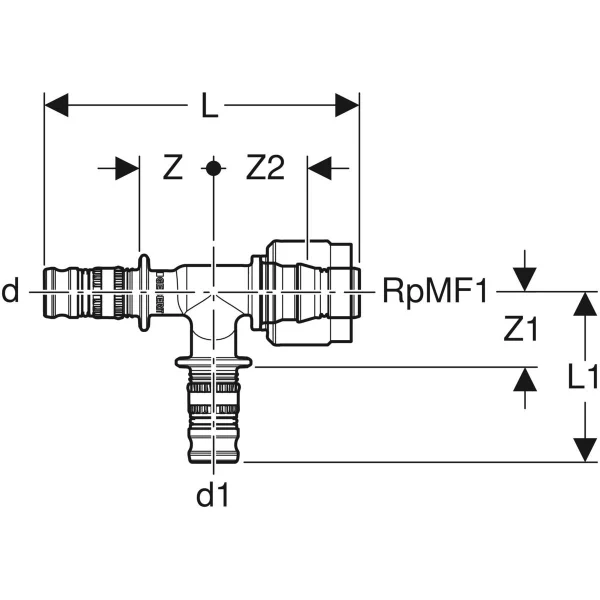

DN: 15
d, ø: 20 mm
RpMF1: 1/2 ″
d1, ø: 20 mm
arc: 90 °
L: 9.4 cm
L1: 5.1 cm
Z: 2.2 cm
Z1: 2.2 cm
Z2: 2.8 cm
