material
PE-RT II / Al / PE-RT II
Surface roughness
7 µm
Thermal expansion
0.026 mm/(m-K)
Thermal conductivity pipe
0.43 W/(m-K)
Insulation material
PE flexible foam
Thermal conductivity of insulation
0.04 W/(m-K)
Water vapour diffusion resistance of outer skin insulation
7000 µ
Click on an application to search for other products
For hot and cold drinking water
For cooling and heating water without antifreeze
For cooling and heating water with antifreeze
For service and process water
For treated water
For rainwater with a pH value > 6.0
For seawater
For chemicals and technical fluids
For compressed air (purity class oil 0-3)
For negative pressure
For inert gases (e.g. nitrogen)
For building services, industry and shipbuilding
Overview of applications - Geberit Mepla
Click on a property to search for other products
Bendable by hand
Media pipe diffusion-tight
HCFC-free and HFC-free insulation
Pipe end with transparent protective plug
Closed-cell insulation, blue protective film

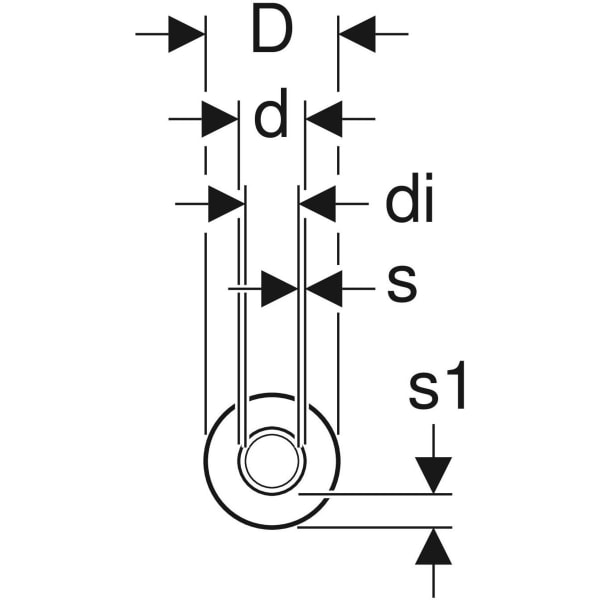

DN: 12
d, ø: 16 mm
Insulation: 26 mm
di, ø: 11.5 mm
D: 7 cm
s1: 26 mm
s: 2.25 mm

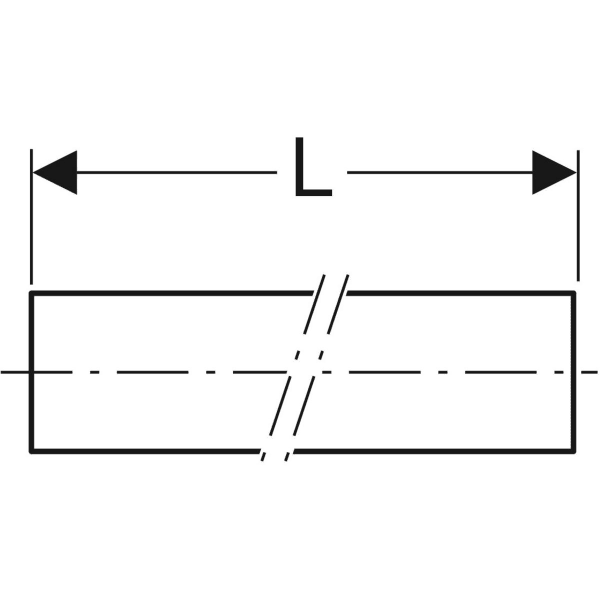

L: 25 m
VE1: 25 m
