Product material
Brass CW617N
Click on an application purpose to search more products
For cooling and heating water without antifreeze agent
For cooling and heating water with antifreeze agent
For skirting board systems
Exclusively suitable for heating and cooling
Application overview – Geberit Mepla
Click on a characteristic to search more products
Leaky if unpressed
Inlet and return flow exchangeable
Nickel-plated
O-ring made of EPDM
Pressing nipple with transparent protective cap
Installation completely in front of the wall
Connector T-piece with short connection
Connector T-piece with long connection
2 union connectors for Euro cone G 3/4"

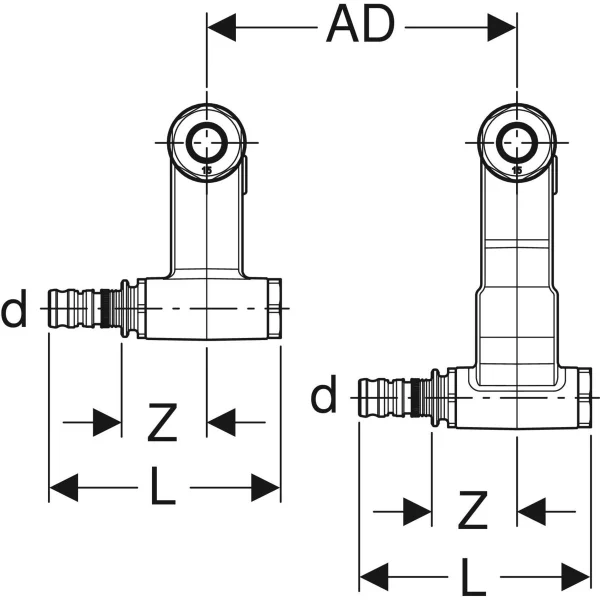

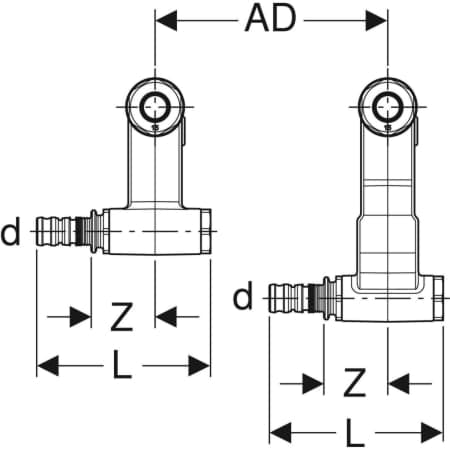

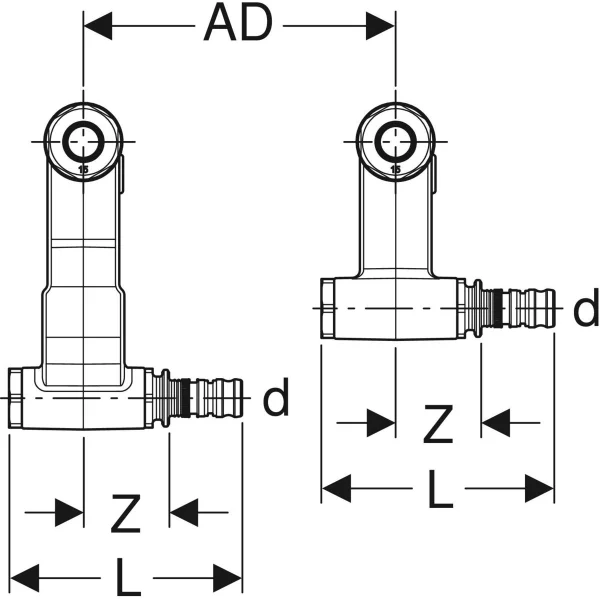

DN: 12
d, ø: 16 mm
d1, ø: 15 mm
arc: 90 °
AD: 5 cm
L: 8.9 cm
l: 1.3 cm
l1: 3.3 cm
H: 10 cm
H1: 6.5 cm
Z: 3.4 cm
Z1: 1.5 cm
Connection: right
