Product material
Gunmetal (CuSn5Zn5Pb2-C)
Click on an application purpose to search more products
For cold and hot potable water
For cooling and heating water without antifreeze agent
For cooling and heating water with antifreeze agent
For service water and process water
For rainwater with a pH value of > 6.0
For seawater
For extinguishing water (wet)
For extinguishing water (wet/dry, dry)
For chemicals and technical liquids
For compressed air (oil purity class 0–3)
For negative pressure
For inert gases (e.g. nitrogen)
For technical building systems, industry and shipbuilding
Application overview – Geberit Mepla
Click on a characteristic to search more products
Leaky if unpressed
Sound-absorbing
O-ring made of EPDM
Pressing nipple with transparent protective cap
Protection plug for one-time pressure test with cold water up to a maximum of 15 bar / 1500 kPa
Protection plug
Fastening material

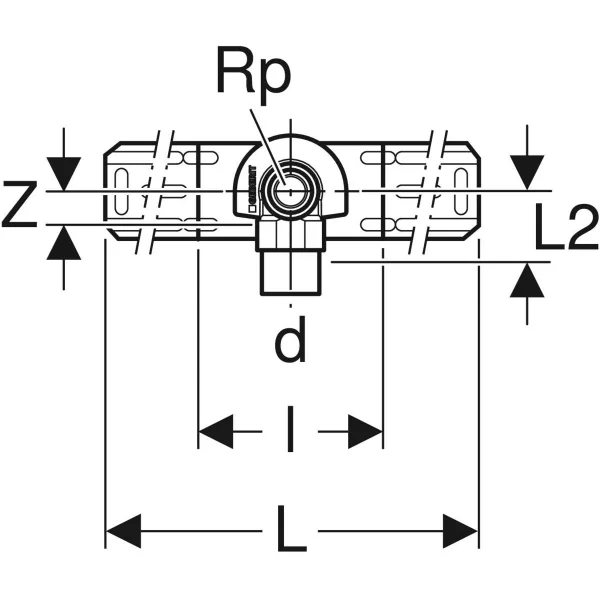

DN: 12
d, ø: 16 mm
Rp: 1/2 ″
arc: 90 °
L: 46 cm

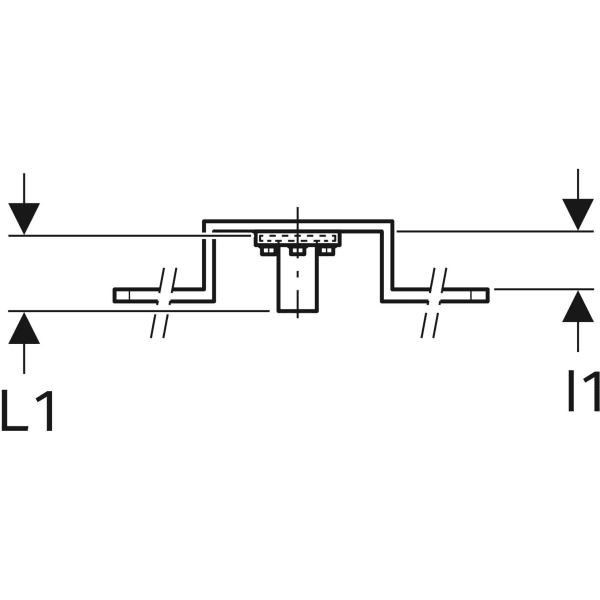

L1: 5.2 cm
L2: 5 cm
l: 10 cm
l1: 4 cm
Z: 2.5 cm
