Medium temperature with EPDM flat gasket
0-100 °C
Material
CrNiMo steel 1.4401 (DIN EN 10088)
Click on an application to search for other products
For hot and cold drinking water
For cooling and heating water without antifreeze
For service and process water
For treated water
For rainwater with a pH value > 6.0
For grey and black water with a pH value > 6.0
For extinguishing water (wet)
For extinguishing water (wet/dry, dry)
For sprinklers (wet)
For chemicals and technical fluids
For compressed air (purity class oil 0-3)
For negative pressure
For inert gases (e.g. nitrogen)
For industrial gases (e.g. acetylene, shielding welding gases)
For building services, industry and shipbuilding
Overview of applications - Geberit Mapress stainless steel for liquid media
Overview of applications - Geberit Mapress stainless steel for gaseous media
Click on a property to search for further products
Press indicator
Unpressed and leaking
Union nut made of brass
Sealing ring made of CIIR black

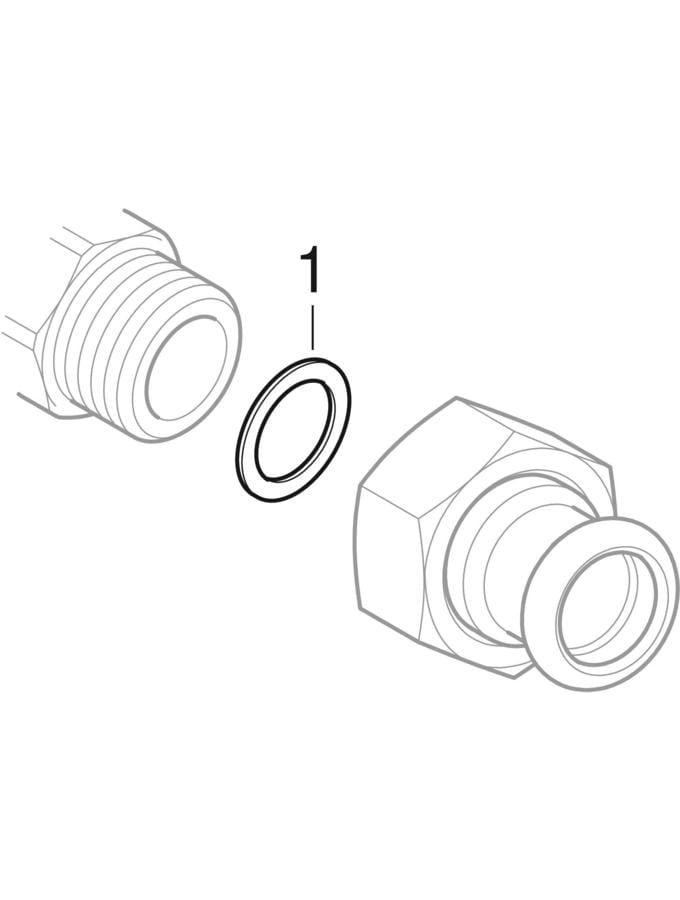

EPDM flat gasket
Compression sleeve with transparent protective plug
DN: 12
d, ø: 15 mm
G: 1 1/4 ″
di, ø: 26 mm
L: 4.3 cm
Z: 1.3 cm
PU1: 1 pc.
