Operating pressure
≤ 16 bar
Operating temperature
-30 – +120 °C
Product material
CrNiMo steel 1.4401 (EN 10088)
Click on an application purpose to search more products
For technical building systems, industry and shipbuilding
Exclusively for absorption of axial linear expansion during operation
Suitable exclusively for liquid media
Application overview – Geberit Mapress Stainless Steel for liquid media
Click on a characteristic to search more products
Pressing indicator
Silicone-free (LABS-free)
Leaky if unpressed
Bellows made of stainless steel

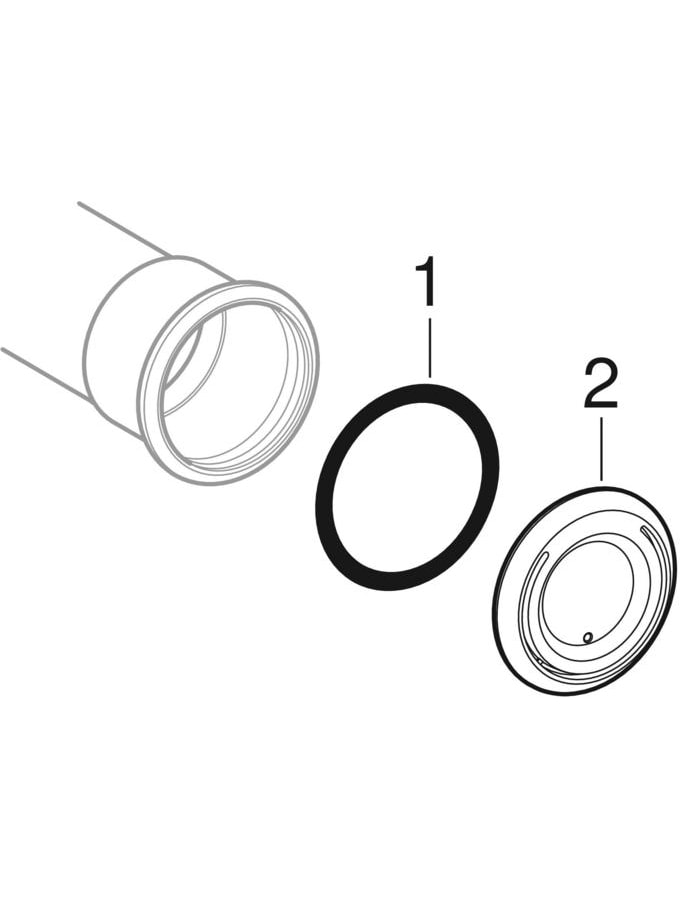

Seal ring made of CIIR, black
Pressing socket with transparent protection plug
Valid for system: Geberit Mapress Stainless Steel (silicone-free), Geberit Mapress Stainless Steel, Geberit Mapress Therm
DN: 40
d, ø: 42 mm
D: 5.9 cm
La: 13 mm
L: 14.9 cm
Z: 8.9 cm
