Product material
Cu-DHP copper CW024A (EN 1412)
Click on an application purpose to search more products
For cold and hot potable water
For cooling and heating water without antifreeze agent
For cooling and heating water with antifreeze agent
For district heating water ≤ 120 °C
For service water and process water
For compressed air (oil purity class 0–3)
For negative pressure
For inert gases (e.g. nitrogen)
For technical building systems, industry and shipbuilding
Application overview – Geberit Mapress Copper
Click on a characteristic to search more products
Pressing indicator
Leaky if unpressed up to ø ≤ 54 mm
Concentric

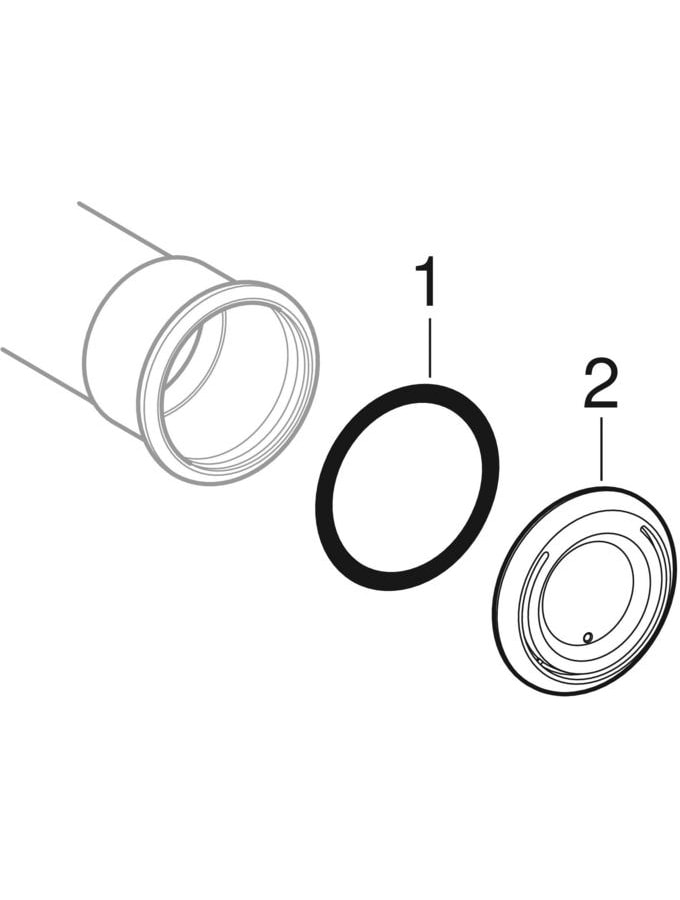

Seal ring made of CIIR, black, up to ø ≤ 54 mm
Seal ring made of EPDM, black, from ø > 54 mm
Pressing socket with transparent protection plug
DN: 100 / 80
d, ø: 108 mm
d1, ø: 88.9 mm
L: 20.3 cm
H: 14.3 cm
