Product material
Gunmetal (CuSn5Zn5Pb2-C)
Click on an application purpose to search more products
For natural gases
For liquefied gases
For natural and liquefied gases
Application overview – Geberit Mapress Copper
Click on a characteristic to search more products
Pressing indicator
Leaky if unpressed
Marked in yellow

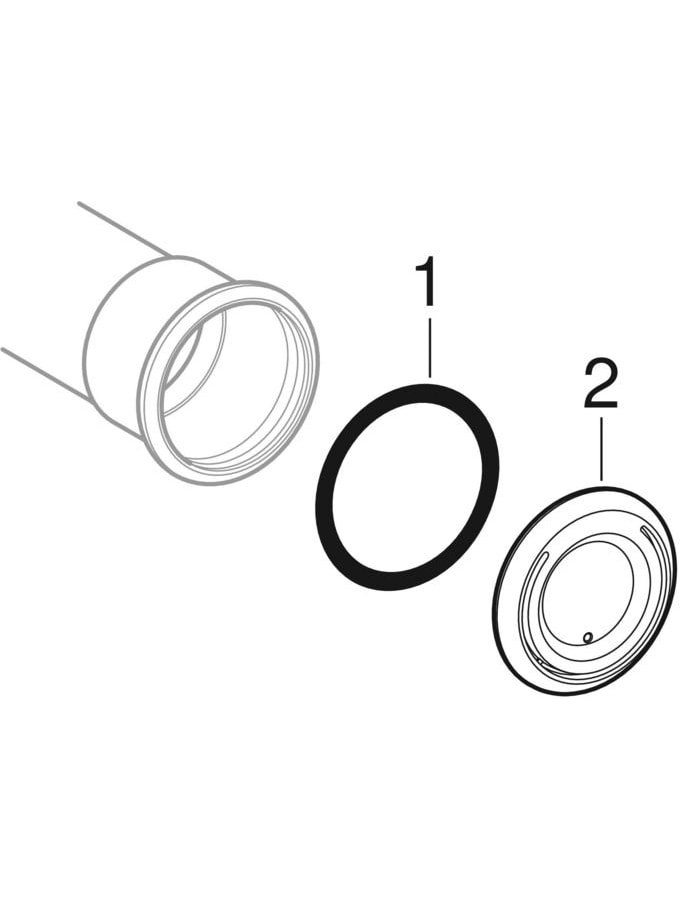

Seal ring made of HNBR, yellow
Pressing socket with yellow protection plug

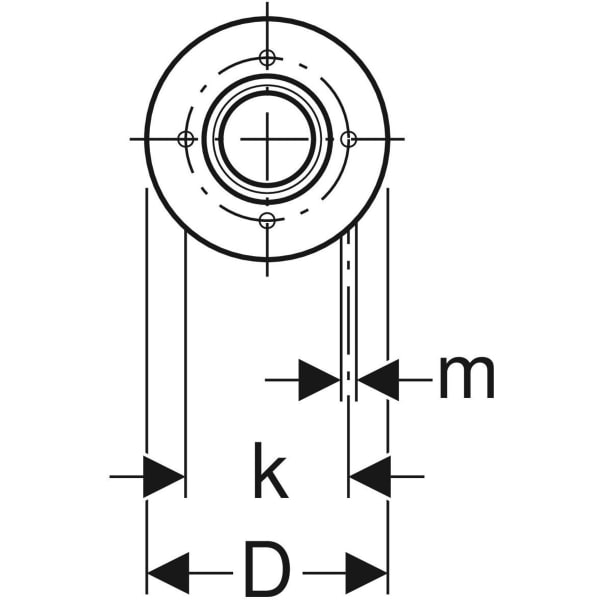

Type A (smooth sealing surface), EN 1092-1
DN: 25

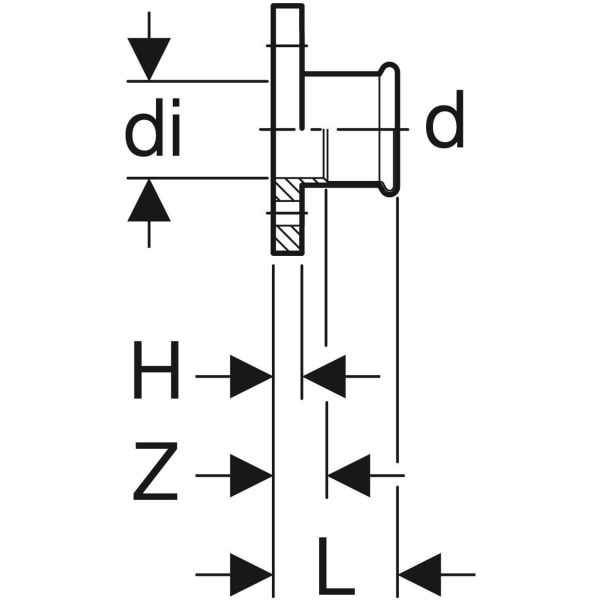

d, ø: 28 mm
di, ø: 26 mm
D: 11.5 cm
k: 85 mm
m: 14 mm
L: 5.7 cm
H: 1.4 cm
Z: 3.4 cm
n: 4 pc.
PN: 10 / 16 bar
