Product material
Lead-free silicon bronze (CuZn21Si3P)
Material, insulation
EPP
Insulation thickness
8.5 mm
Thermal conductivity, insulation
0.038 W/(m·K)
Click on an application purpose to search more products
For cooling and heating water without antifreeze agent
For cooling and heating water with antifreeze agent
For connecting to two parallel pipes without intersecting
Exclusively suitable for heating and cooling
Application overview – Geberit FlowFit
Click on a characteristic to search more products
Pressing indicator
Leaky if unpressed
Lead-free
O-ring made of EPDM
Pressing connector with transparent protective cap

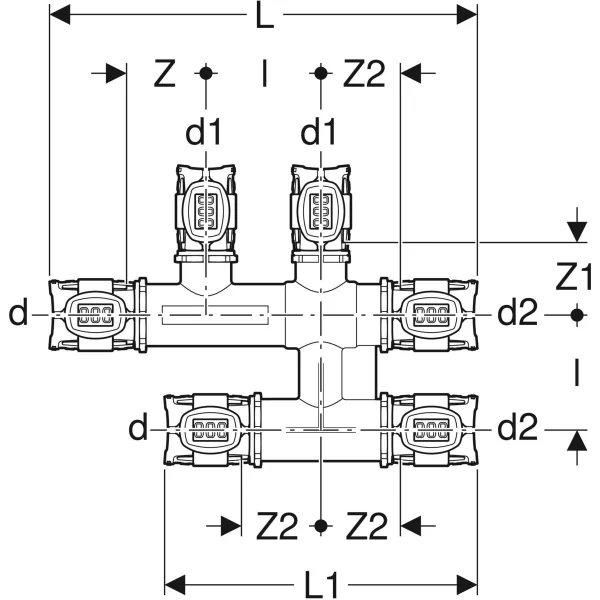

DN: 15 / 12
d, ø: 20 mm
d1, ø: 16 mm
d2, ø: 20 mm
arc: 90 °
L: 18.6 cm
L1: 13.6 cm
l: 5 cm

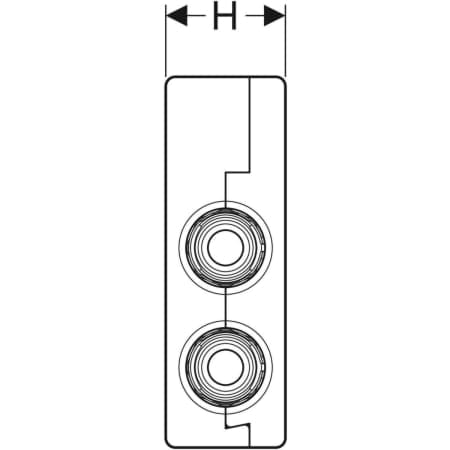

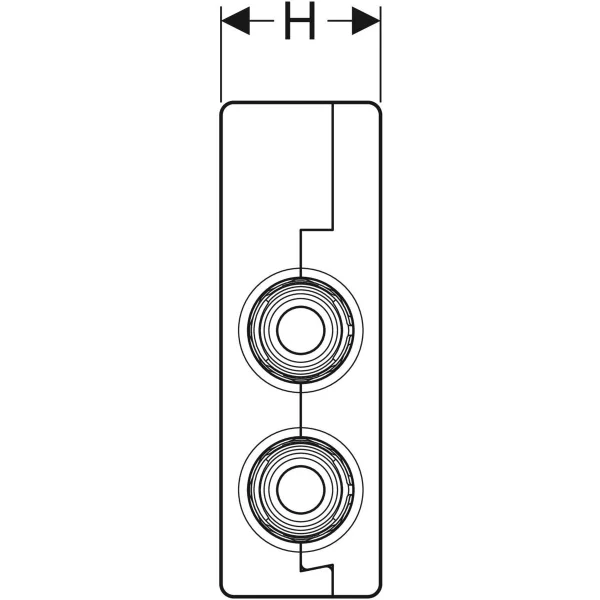

H: 5 cm
Z: 3 cm
Z1: 3 cm
Z2: 3.4 cm
