Product material
CrNiMo steel 1.4401 (EN 10088)
Click on an application purpose to search more products
For cold and hot potable water
For cooling and heating water without antifreeze agent
For cooling and heating water with antifreeze agent
For service water and process water
For treated water
For rainwater with a pH value of > 6.0
For extinguishing water (wet)
For extinguishing water (wet/dry, dry)
For chemicals and technical liquids
For compressed air (oil purity class 0–3)
For negative pressure
For inert gases (e.g. nitrogen)
Suitable exclusively for pressing in Geberit Mapress pressing sockets
For technical building systems, industry and shipbuilding
Application overview – Geberit Mapress Stainless Steel for liquid media
Application overview – Geberit FlowFit
Click on a characteristic to search more products
Pressing indicator
Leaky if unpressed
Lead-free
Seal ring made of CIIR, black
O-ring made of EPDM
Pressing connector with transparent protective cap
Pressing socket with transparent protection plug
Valid for system: Geberit Mapress Therm, Geberit Mapress Stainless Steel, Geberit FlowFit

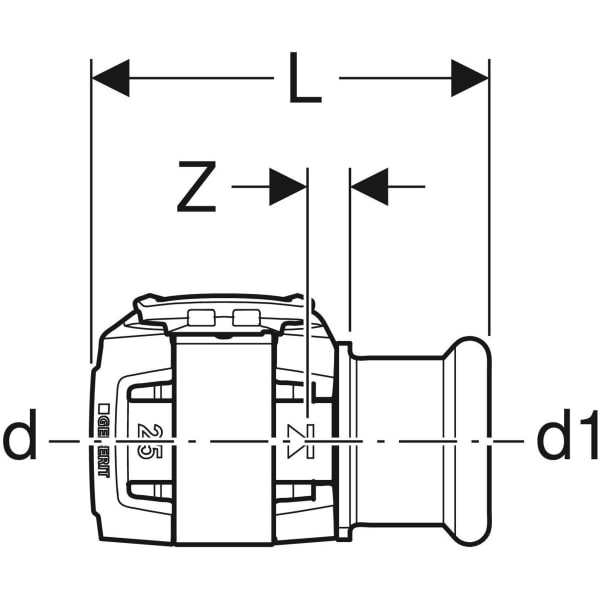

DN: 12 / 10
d, ø: 16 mm
d1, ø: 12 mm
L: 5.4 cm
Z: 0.6 cm
