Product material
Lead-free silicon bronze (CuZn21Si3P)
Click on an application purpose to search more products
For cold and hot potable water
For cooling and heating water without antifreeze agent
For cooling and heating water with antifreeze agent
For service water and process water
For rainwater with a pH value of > 6.0
For seawater
For extinguishing water (wet)
For extinguishing water (wet/dry, dry)
For chemicals and technical liquids
For compressed air (oil purity class 0–3)
For negative pressure
For inert gases (e.g. nitrogen)
Suitable exclusively for threads with an inner diameter of ≤ di, see table
For technical building systems, industry and shipbuilding
Application overview – Geberit FlowFit
Click on a characteristic to search more products
Pressing indicator
Leaky if unpressed
Lead-free
O-ring made of EPDM
Pressing connector with transparent protective cap
Flat gasket made of fibre composite material

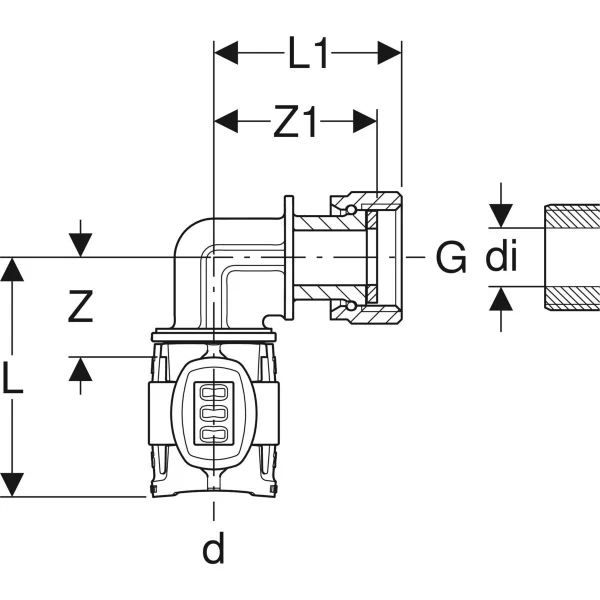

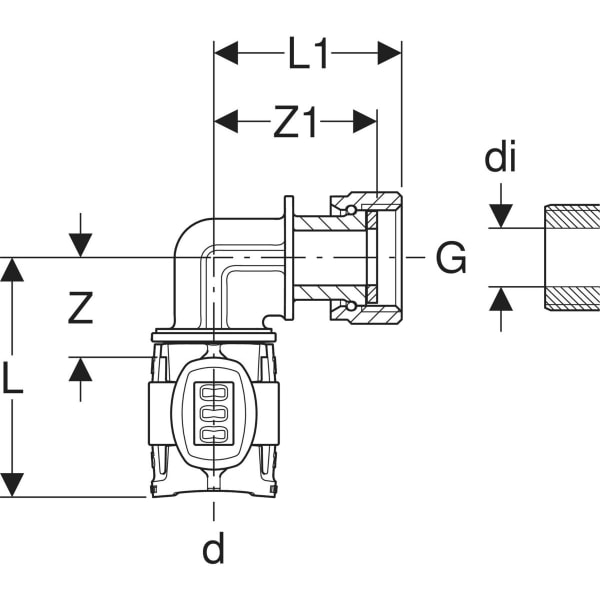

DN: 20
d, ø: 25 mm
G: 3/4 ″
arc: 90 °
di, ø: 15 mm
L: 5.9 cm
L1: 4.5 cm
Z: 3.5 cm
Z1: 3.8 cm
SW: 30 mm
