material
Steel
Click on an application to search for more products
For drywall construction
For installation in room-height installation walls
For flush-mounted fittings
Click on a property to search for other products
Powder-coated frame
Frame with ø 9 mm drill holes for fastening in timber stud construction
Mounting plate adjustable in height and depth
Mounting plate made of veneer wood, waterproof glued
Building material class B2 according to DIN 4102-1, or class D-s2, d0 according to EN 13501-3
Formaldehyde emission class A according to EN 1084, or class E 1 according to EN 13936
Traverse fitting height and depth adjustable
Connection bracket Rp 1/2" / R 1/2", MF-capable
Connection bracket Rp 3/4" / R 1/2", MF-capable
2 sound insulation pads
2 insulating sleeves
Fastening material

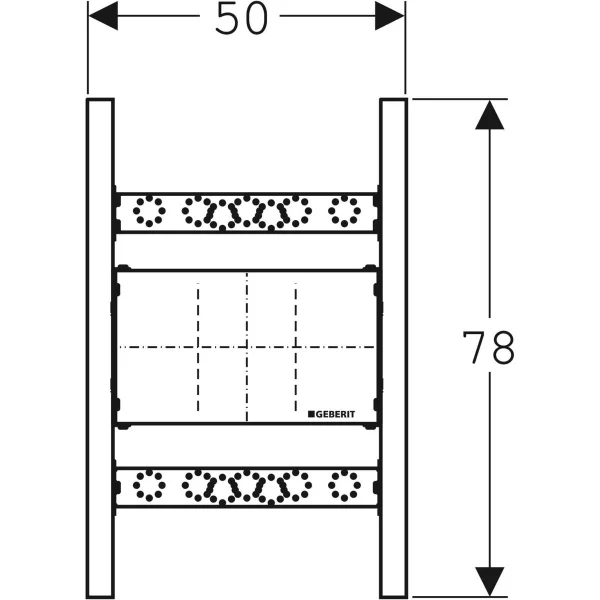

W: 50 cm
H: 78 cm

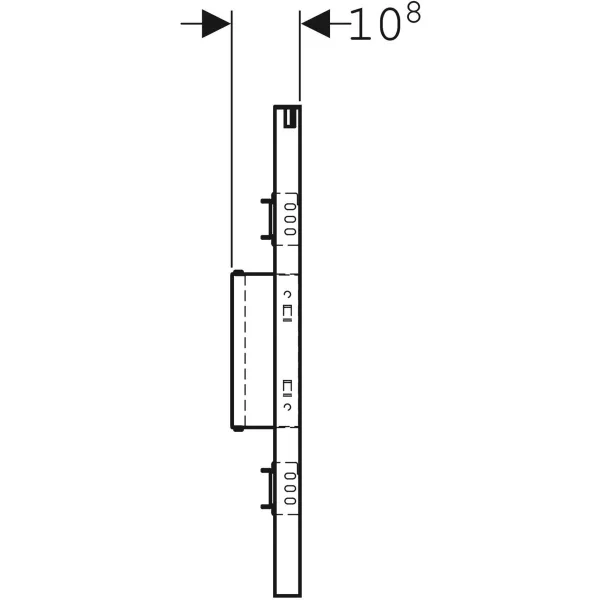

D: 10.5 cm
PU1: 1 pc.
PU2: 10 pcs.
