Product material
Wood
Height-adjustable
No
Click on an application purpose to search more products
For drywall construction
For installation in part or room-height prewall installations
For installation in room-height installation walls
For installation in part or room-height Geberit Duofix system walls
For fastening between Geberit Duofix elements for washbasin and studs
For fastening washbasins with cabinet
For use with eccentric outlet tap
Click on a characteristic to search more products
Width adapted to Geberit ONE washbasins with cabinets
Width adapted to Geberit Duofix crossbars for element fastening, for stud clearance from 60 cm (90–105 cm)
Mounting plate can be cut to element width and position
Can be divided into two smaller mounting plates
Mounting plate made of veneered wood, waterproof bonded
Building material class B2 in accordance with DIN 4102-1, resp. class D-s2, d0 in accordance with EN 13501-3
Formaldehyde release class A in accordance with EN 1084, resp. Class E 1 according to EN 13936

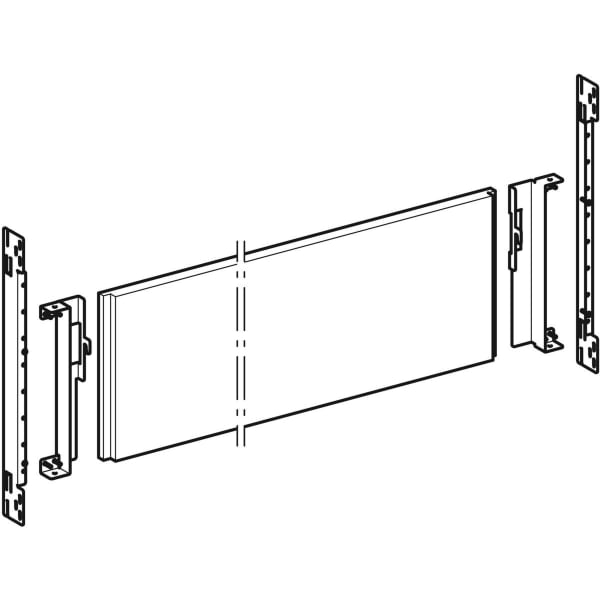

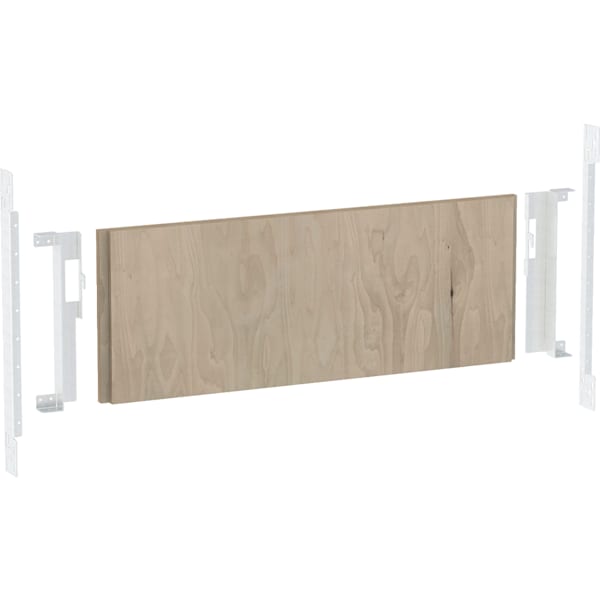

Mounting plate
4 fixing brackets
Fastening material
Fastening material for washbasin (if the positions of the fastening screws are on the mounting plates)

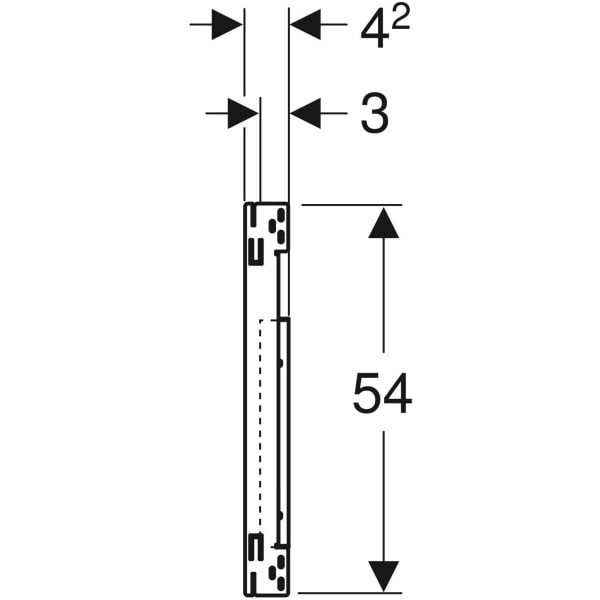

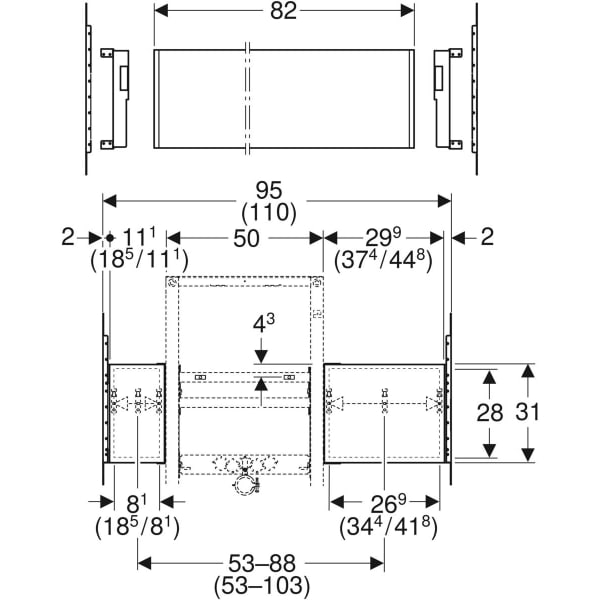

Nominal width: 90–105 cm
B: 82 cm
H: 31 cm
T: 3 cm
