Product material
Steel
Click on an application purpose to search more products
For drywall construction
For installation in part or room-height prewall installations
For installation in room-height installation walls
For installation in part or room-height Geberit Duofix system walls
For installation of washbasins
For Geberit ONE washbasin taps, wall-mounted, with concealed function box
For floor constructions 0–20 cm
Click on a characteristic to search more products
Statically self-supporting frame, protected against corrosion with powder coating
Frame with ø 9 mm drilling holes for fastening in wood frame construction
Galvanized feet
Feet adjustable 0–20 cm
Non-slip leg supports
Rotatable foot plates
Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
Fastening distance for washbasin 5–38 cm
Tap crossbar height-adjustable
Premounted fastening for wall-mounted tap
Water supply connection compatible with MasterFix and MeplaFix
Water supply connection on the bottom of concealed housing
Fastening for connection bend, height-adjustable and sound-absorbing
Concealed housing for Geberit ONE washbasin tap, premounted
Premounted connection pipes between concealed housing and fastening for wall-mounted tap
Shut-off unit integrated in the concealed housing
Connection bend made of PE-HD, ø 50 mm
Seal ø 44 / 32 mm
2 threaded rods M10
Protection box with cover, for concealed housing
Protection box for fastening of wall-mounted tap
Fastening material

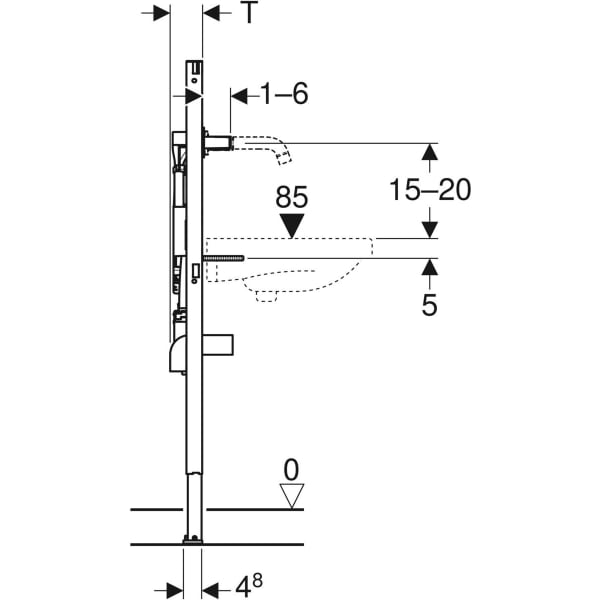

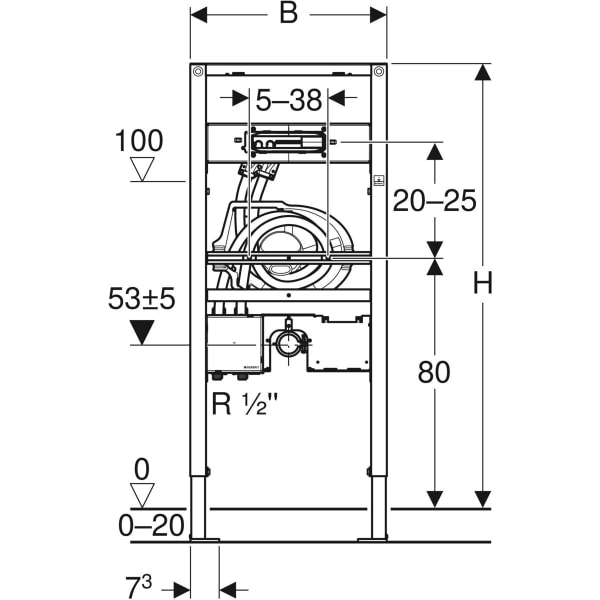

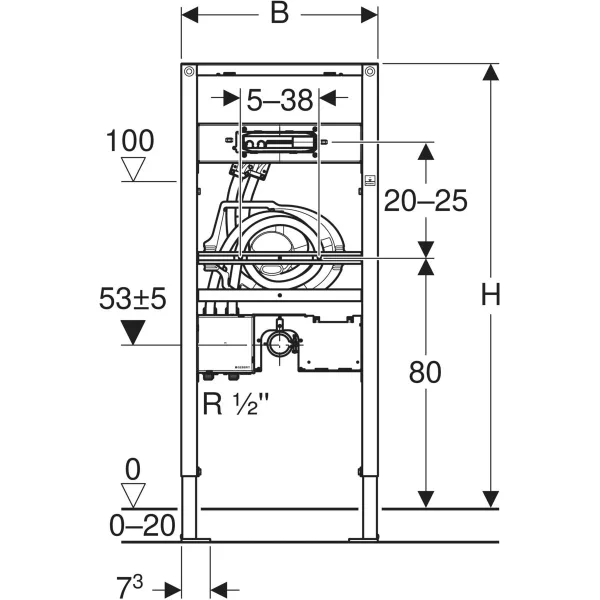

B: 50 cm
H: 112–130 cm
T: 7.5 cm
