material
Steel
Click on an application to search for more products
For drywall construction
For installation in partial or room-height pre-wall installations
For installation in room-height installation walls
For installation in partial or room-height Geberit Duofix system walls
For the installation of washbasins
For floor-mounted taps
For floor structures 0-20 cm
Click on a feature to search for more products
Enables more positioning options for furniture substructure mounting next to element, compared to element with 50 cm width
Statically self-supporting frame, corrosion-protected with powder coating
Frame with 9 mm dia. drill holes for fastening in timber stud construction
Galvanised foot supports
Foot supports adjustable 0-20 cm
Footrests with non-slip surface
Swivelling foot plates
Footplate depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails
Fixing distance washbasin 5-32 cm
Height-adjustable and sound-insulated attachment for connecting bend
Fitting crossbar height and depth adjustable
2 connection brackets Rp 1/2" / R 1/2", MF-capable
2 sound insulation pads
2 insulating sleeves
Connection bend made of PE-HD, ø 50 mm
Seal ø 44 / 32 mm
2 M10 threaded rods
Fixing material

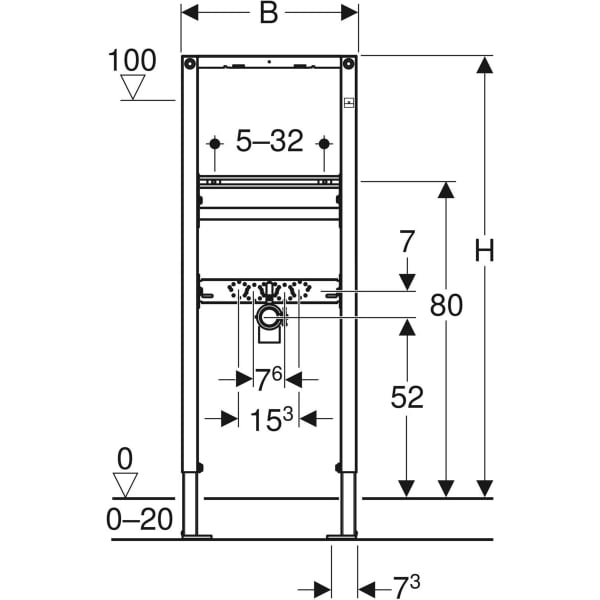

W: 44 cm
H: 112 cm
D: 7.5 cm
PU1: 1 pc.
