material
steel
Height adjustable
Yes
Click on an application to search for other products
For drywall construction
For installation in partial or room-height pre-wall installations
For installation in room-height installation walls
For installation in part-height or room-height Geberit Duofix system walls
For the installation of washbasins
For Piave and Brenta washbasin taps, free-standing installation, for concealed function box
For floor structures 0-20 cm
Click on a feature to search for other products

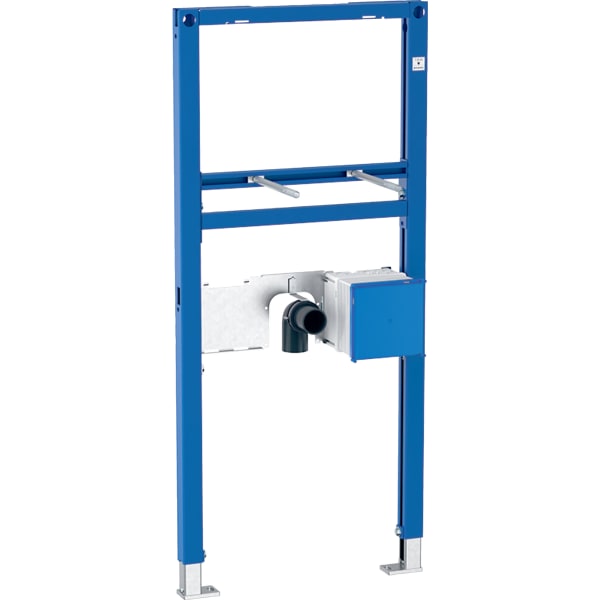

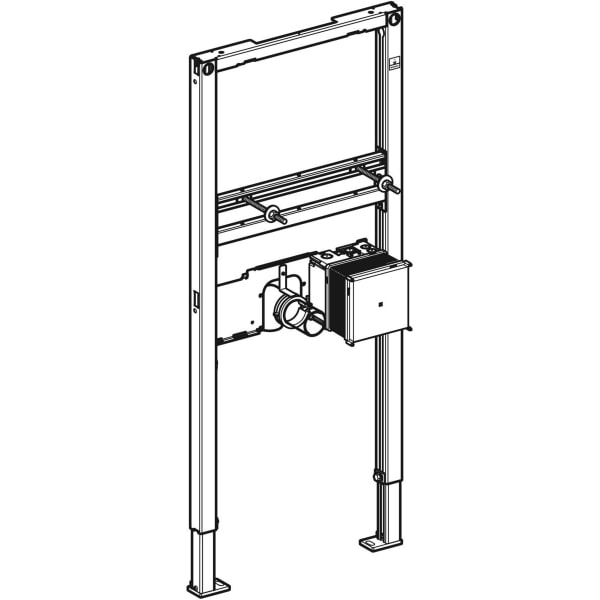

Statically self-supporting frame, corrosion-protected with powder coating
Frame with drill holes ø 9 mm for fastening in timber stud construction
Galvanised foot supports
Foot supports adjustable 0-20 cm
Anti-slip foot supports
Swivelling foot plates
Foot plate depth suitable for installation in U profiles UW 50 and UW 75 and Geberit Duofix system rails
Fixing distance washbasin 5-38 cm
Water connection MasterFix and MeplaFix compatible
Water connection to flush-mounted housing, bottom
Height-adjustable and sound-insulated attachment for connection elbow
Flush-mounted housing for Geberit washbasin tap, free-standing installation, for flush-mounted function box, pre-assembled
Shut-off units integrated in flush-mounted housing
Connection terminal for electrical connection in flush-mounted housing
Connection elbow made of PE-HD, ø 50 mm
Seal ø 44 / 32 mm
2 M10 threaded rods
Building protection with cover, for flush-mounted housing
Fastening material

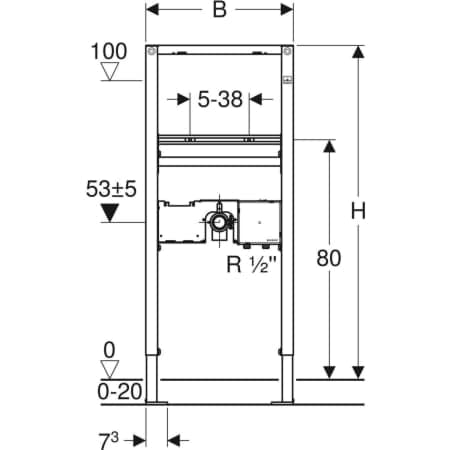

W: 50 cm
H: 112 cm

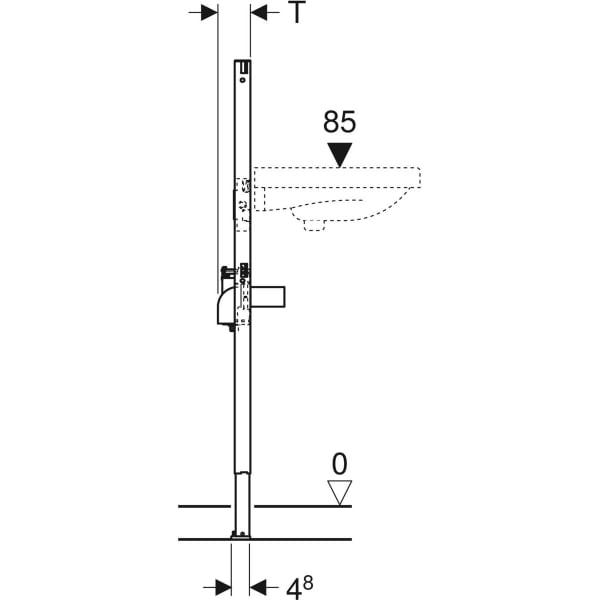

D: 7.5 cm
PU1: 1 pc.
