Protection class
IP45
Operating voltage
12 V DC
Power consumption stand-by
1 W
Flow pressure
10-1000 kPa
Cold water temperature max.
25 °C
Hot water temperature max.
70 °C
Flush volume factory setting for cistern (litres)
6 / 3 l
Large flush volume Setting range for cistern
4 / 4.5 / 6 / 7.5 l
Small flush volume Setting range for cistern
2-4 l
Flow rate at 3 bar
0.16 l/s
Minimum flow pressure for calculation flow rate
10 kPa
Calculation flow rate
0.09 l/s
Flushing capacity per solenoid valve
4 l/min
Interval flush Factory setting
72 h
Interval flush volume Factory setting
3 l
Flush volume per day and solenoid valve max.
40 l
Flush interval min.
24 h
Height adjustable
No
Click on an intended use to search for other products
For installation in partial or room-height pre-wall installations
For installation in room-height installation walls
For installation in part-height or room-height Geberit Duofix system walls
For wall-hung WCs with connection dimensions in accordance with DIN EN 33:2011-11
For wall-hung WCs with projection up to 62 cm
For 1-quantity, 2-quantity or flush-stop flushing
For floor structures 0-20 cm
To prevent stagnation in drinking water pipes
For connection to Geberit bus via converter
Click on a feature to search for other products
Statically self-supporting frame, corrosion-protected with powder coating
Frame with ø 9 mm drill holes for fastening in timber stud construction
Galvanised foot supports
Foot supports adjustable 0-20 cm
Anti-slip foot supports
Swivelling foot plates
Foot plate depth suitable for installation in U profiles UW 50 and UW 75 and Geberit Duofix system rails
Connection elbow can be installed in various depth positions without tools, adjustment range 45 mm
Sound-insulated connection bend fixing
Concealed cisterns with actuation from the front
Concealed cistern insulated against condensation
Immediate rinsing possible with factory setting
Building protection for service opening protects against moisture and dirt
Building protection for service opening can be cut to length
With empty pipe for water supply line for Geberit AquaClean shower toilets and for connection cable
Fastening option for electrical connection
Selectable flush programmes (time or interval)
Compatible with Geberit Control app
Device settings and operation with mobile device via integrated Bluetooth® interface
Function statistics can be called up via the Geberit Control app
Logs over 5000 flushing processes
Usage recognition
Digital I/O interface (central flush triggering, potential-free fault display, control of external solenoid valve)
Can be wired networked with Geberit Gateway via GEBUS converter
Connection to Geberit bus via converter
Built-in backflow sensor
Solenoid valve de-energised closed
Interference immunity for industrial operations in accordance with EN 61000-6-2
One connection for cold water R 1/2", MF-capable, with blue protective cap, top
Power supply via external power supply unit or via bus converter with integrated power supply unit
Building protection for service opening
Connection set for WC, ø 90 mm
90° connection elbow made of PE-HD, ø 90 mm
2 protective plugs
2 M12 threaded rods
Transition sleeve made of PE-HD, ø 90 / 110 mm
Solenoid valve unit with safety pin and flow limiter
Control unit
Fastening material

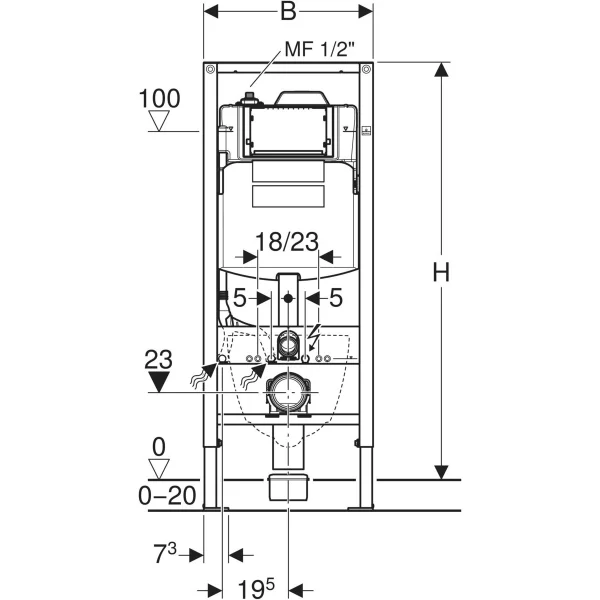

W: 50 cm
H: 120 cm
D: 12 cm
Connection: 2 water connections
Power consumption: 7.2 W
PU1: 1 pc.
