Flow pressure
10-1000 kPa
Water temperature max.
25 °C
Flush volume Factory setting
6 / 3 l
Large flush volume Setting range
4 / 4.5 / 6 / 7.5 l
Small flush volume Setting range
2-4 l
Flow rate at 3 bar
0.16 l/s
Minimum flow pressure for calculation flow rate
10 kPa
Calculation flow rate
0.09 l/s
Material
steel
Click on an application to search for other products
For metal and timber stud walls
For Geberit Duofix system walls
For installation in part-height or room-height pre-walls
For installation in room-height partition walls
For floor structures 0-25 cm
Click on a property to search for other products

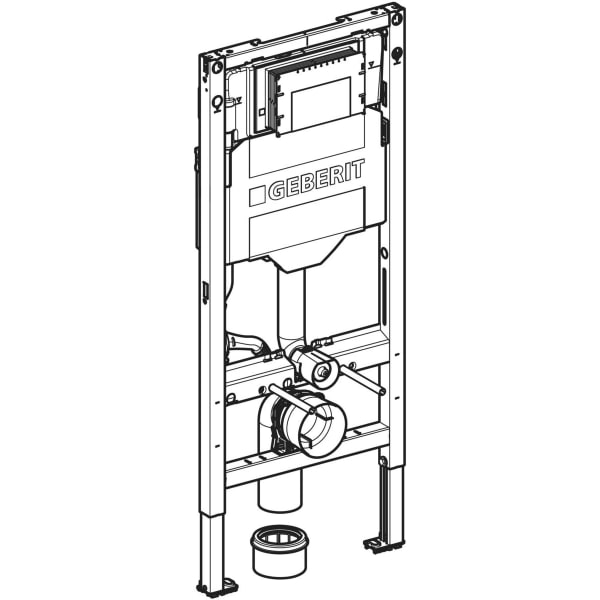

Statically self-supporting frame, corrosion-protected with powder coating

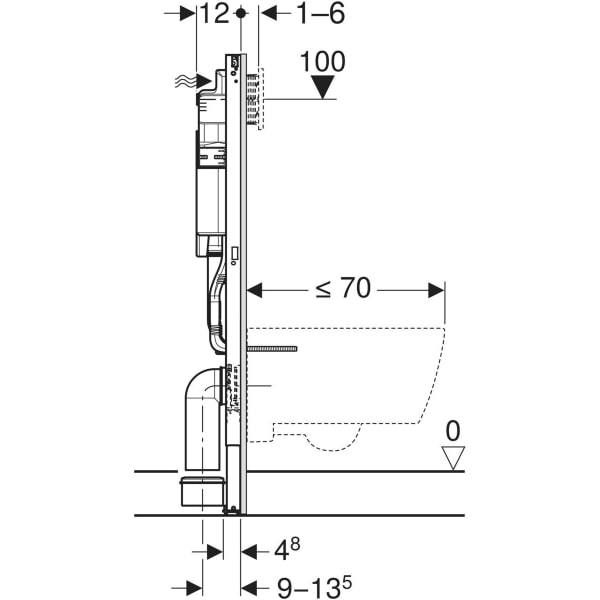

Frame for wall-hung WCs with connection dimensions to EN 33 and projection of up to 70 cm
With pull-out plate for lateral fastening above the element on metal or wooden profiles or on Geberit Duofix system uprights
Alternative fixing position for wall anchors
Swivelling foot plates, suitable for installation in U profiles UW 50 and UW 75
Foot plates can be mounted in Geberit Duofix system rail without tools, without additional components
Galvanised, corrosion-protected foot supports, with slip resistance
Connection elbow can be mounted in various depth positions without tools, adjustment range 45 mm
Geberit Sigma concealed cistern 12 cm, condensation-insulated
For actuation from the front, suitable for 1-quantity, 2-quantity and flush-stop flushing
Immediate rinsing possible with factory setting
No tools required for installation and maintenance work on the concealed cistern
Water connection at the back or top centre
Construction protection for service opening can be cut to length, protects against moisture and dirt
With empty pipe for water supply line for Geberit AquaClean shower toilets and for connection cable
Fastening option for electrical connection and Power & Connect Box
R 1/2" water connection, MasterFix and MeplaFix-compatible, with integrated angle valve and handwheel
Construction protection for service opening
Connection set for WC, ø 90 mm
90° connection elbow made of PE-HD, ø 90 mm
Transition sleeve made of PE-HD, ø 90 / 110 mm
Fastening and protection material

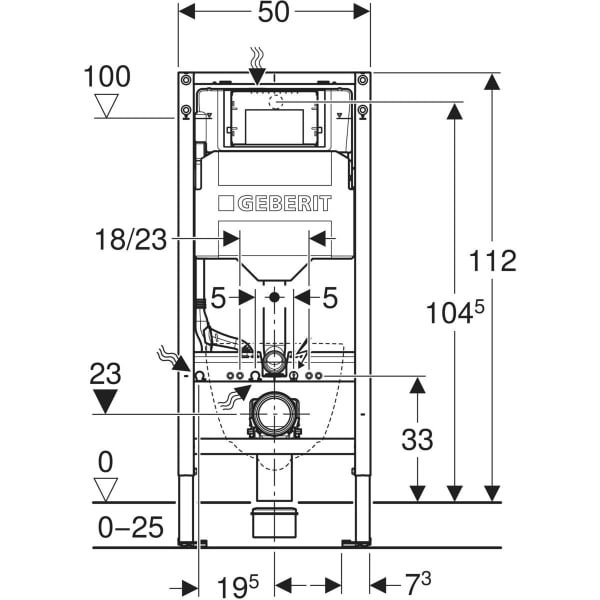

W: 50 cm
H: 112 cm
D: 12 cm
PU1: 1 pc.
PU2: 12 pcs.
PU3: 60 pcs.
PU4: 204 pcs.
