For drywall construction
For installation in partial or room-height pre-wall installations
For installation in room-height installation walls
For installation in partial or room-height Geberit Duofix system walls
For the installation of sinks
For surface-mounted wall-mounted taps
For floor structures 0-20 cm
Click on a property to search for other products
Statically self-supporting frame, corrosion-protected with powder coating
Frame with ø 9 mm drill holes for fastening in timber stud construction
Galvanised foot supports
Foot supports adjustable 0-20 cm
Anti-slip foot supports
Swivelling foot plates
Foot plate depth suitable for installation in U profiles UW 50 and UW 75 and Geberit Duofix system rails
Height-adjustable mounting plate
Mounting plate made of veneer wood, waterproof glued
Building material class B2 according to DIN 4102-1, or class D-s2, d0 according to EN 13501-3
Formaldehyde emission class A according to EN 1084, or class E 1 according to EN 13936
Height-adjustable and sound-insulated attachment for connecting bend
Crossbar fitting height and depth adjustable
2 connection brackets Rp 1/2" / R 1/2", MF-capable
2 sound insulation pads
2 insulating sleeves
Connection bend made of PE-HD, ø 50 / 63 mm
Seal ø 57 / 50 mm
Seal ø 57 / 40 mm
Fastening material

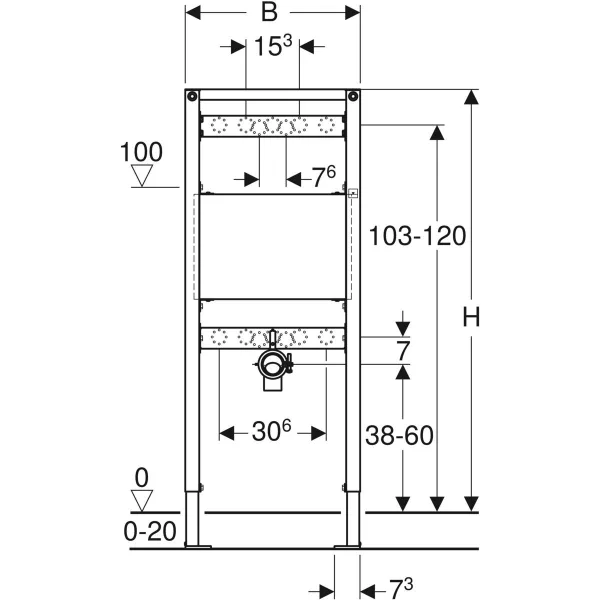

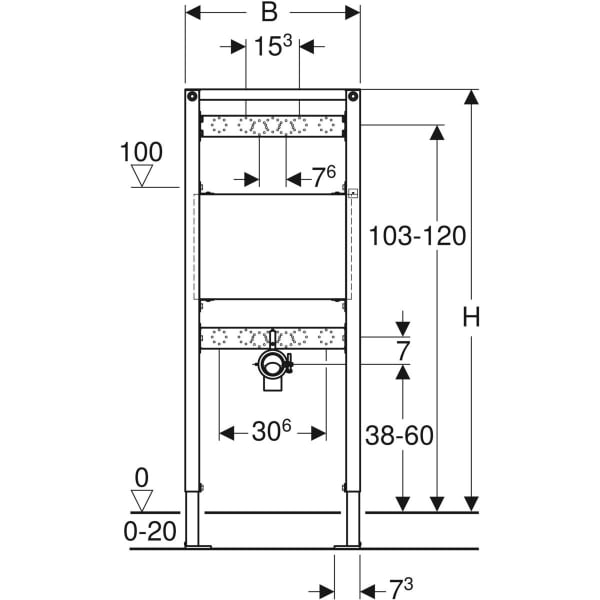

W: 50 cm
H: 130 cm
D: 8.3 cm
PU1: 1 pc.
