Seal water height (mm)
30 mm
Click on an application to search for other products
Consider areas of application based on EN 1253-6
For draining floor-level showers
For installation with a very low floor structure
For screed heights ≥ 65 mm at the inlet
For bonded waterproofing
For drywall construction
For installation in partial or room-height pre-wall installations
For installation in room-height installation walls
For installation in partial or room-height Geberit Duofix system walls
To accommodate the waste water from a single shower head
Click on a property to search for other products
Deviating from the requirements of EN 1253, the sealing water height is only 30 mm

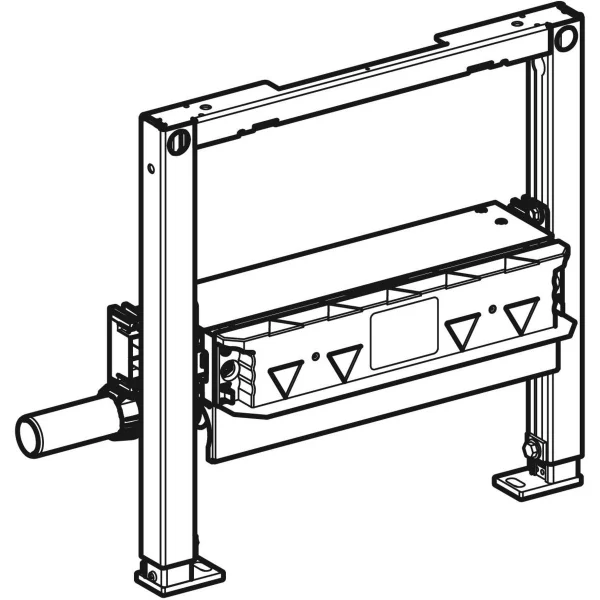

Statically self-supporting frame, corrosion-protected with powder coating
Frame with drill holes ø 9 mm for fastening in timber stud construction
Foot supports with slip resistance
Swivelling foot plates
Foot plate depth suitable for installation in UW 50 U-profiles and Geberit Duofix system rails

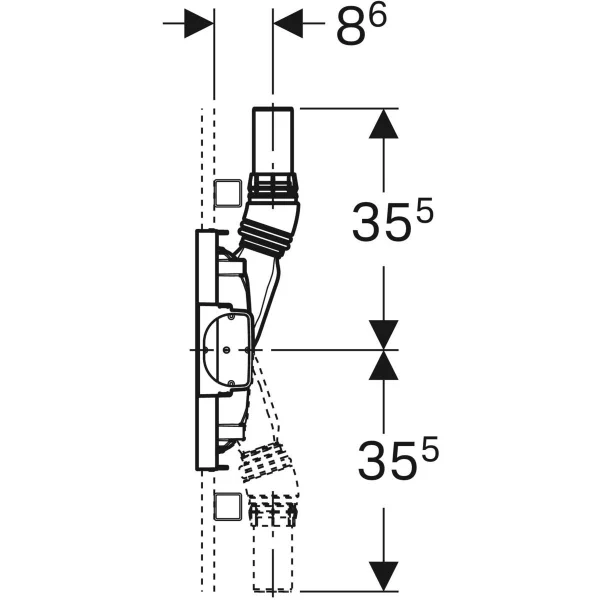

Inlet height of the odour trap adjustable
Planking thickness 10-40 mm
Suitable for tile structures on the floor from 2-26 mm
Suitable for tile structures on walls from 2-35 mm
Adjustable sealing level for stress-free sealing connection
Drainage connection on the side
Sealing fleece pre-assembled
Sealing fleece all round 10 cm, for connecting sealing systems
Connection pipe made of PE-HD, ø 40 mm
Building protection cover with integrated inlet plate
Fastening material
Prefabricated set

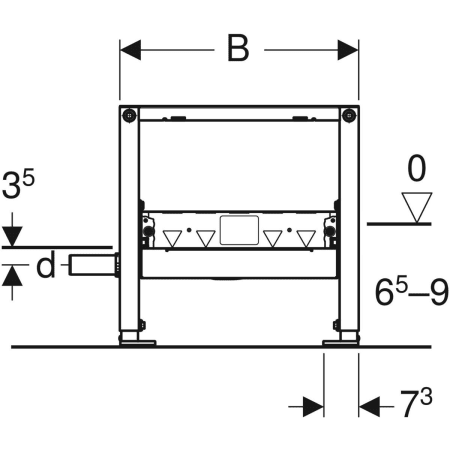

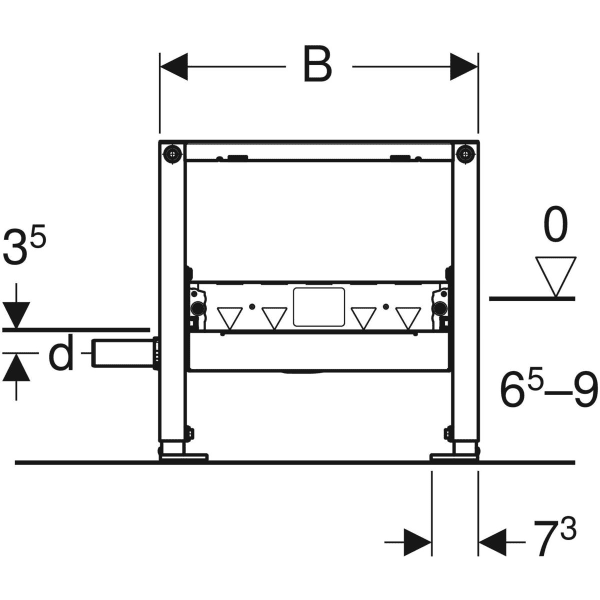

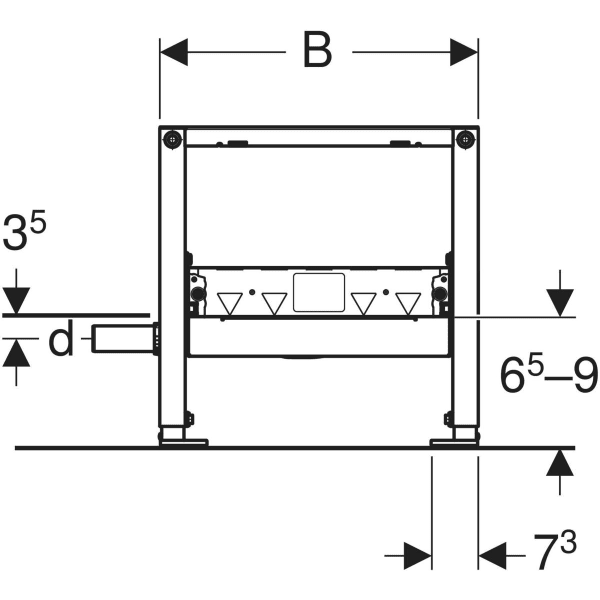

DN: 40
d, ø: 40 mm
Drainage capacity: 0.4 l/s

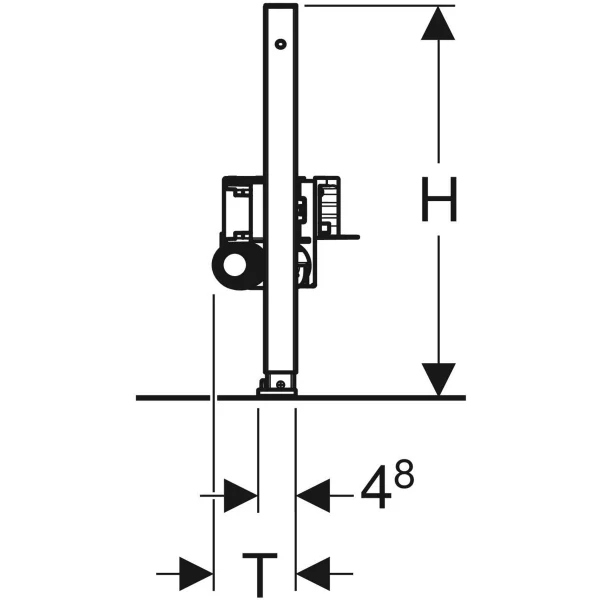

W: 50 cm
H: 50 cm
D: 11 cm
PU1: 1 pc.
PU2: 8 pcs.
