Product material
Steel
Click on an application purpose to search more products
For drywall construction
For installation in room-height prewall installations
For installation in room-height installation walls
For installation in room-height Geberit Duofix system walls
Suitable for less-abled installation
For Geberit ONE washbasins
For Geberit ONE vanity basins
For concealed taps
For floor constructions 0–20 cm
Click on a characteristic to search more products
Statically self-supporting frame, protected against corrosion with powder coating
Suitable for Geberit ONE
Frame with ø 9 mm drilling holes for fastening in wood frame construction
Galvanized feet
Feet adjustable 0–20 cm
Non-slip leg supports
Rotatable foot plates
Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
Mounting plate made of veneered wood, waterproof bonded
Mounting plate adjustable in height and depth
Concealed turn trap with service opening
In-wall cabinet with straight connector made of PE, ø 50 / 56 mm
Outlet mounting box in concealed housing
Crossbar for mirror cabinet
2 side fastenings
2 consoles
2 threaded rods M10
Female socket for mains connection
Fastening material

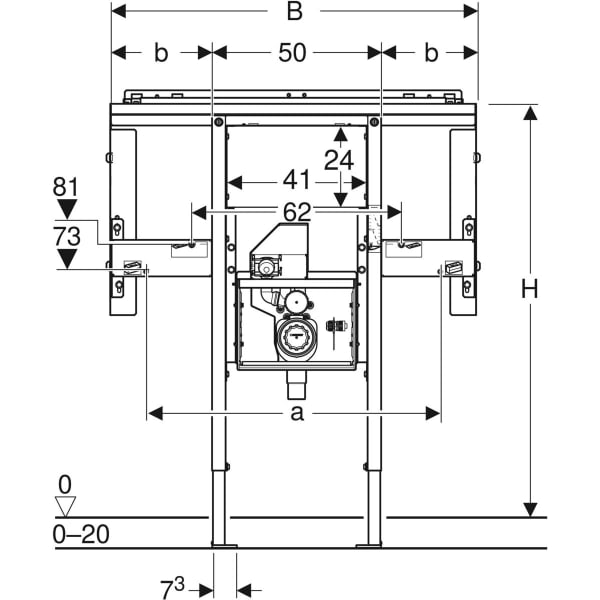

a: 104 cm
B: 125 cm
b: 37.5 cm
Washbasin width: 120 cm
H: 125 cm
T: 14 cm
