Flow pressure
10-1000 kPa
Water temperature max.
25 °C
Flush volume Factory setting
6 / 3 l
Large flush volume Setting range
4 / 4.5 / 6 / 7.5 l
Small flush volume setting range
2-4 l
Flow rate at 3 bar
0.16 l/s
Minimum flow pressure for calculation flow rate
10 kPa
Calculation flow rate
0.09 l/s
Height adjustable
No
Click on an application to search for more products
For drywall construction
For installation in partial or room-height pre-wall installations
For installation in room-height installation walls
For installation in partial or room-height Geberit Duofix system walls
For installation in Geberit GIS support systems for pre-wall
For children's wall-hung WCs
For wall-hung WCs with connection dimensions according to DIN EN 33:2011-11
For flush plate for Bambini WC
For floor structures 0-20 cm
Click on a feature to search for other products

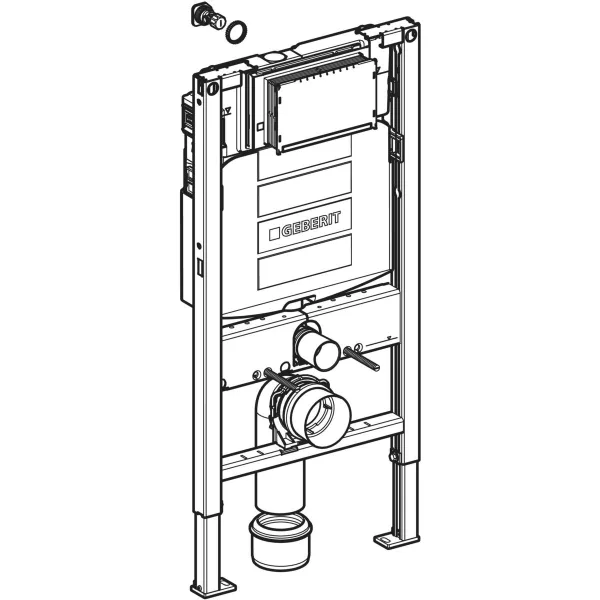

Statically self-supporting frame, corrosion-protected with powder coating
Frame with 9 mm dia. drill holes for fastening in timber stud construction
Galvanised foot supports
Foot supports adjustable 0-20 cm
Anti-slip foot supports
Swivelling foot plates
Foot plate depth suitable for installation in U profiles UW 50 and UW 75 and Geberit Duofix system rails
Connection elbow can be installed in various depth positions without tools, adjustment range 45 mm
Sound-insulated connection bend fixing
Concealed cisterns with actuation from the front
Concealed cistern insulated against condensation
Immediate flushing possible with factory setting
Installation and maintenance work on the concealed cistern without tools
Water connection at the rear or top centre
Construction protection for service opening protects against moisture and dirt
Construction protection for service opening can be cut to length
R 1/2" water connection, MasterFix and MeplaFix-compatible, with integrated angle valve and handwheel
Construction protection for service opening
Connection set for WC, ø 90 mm
90° connection elbow made of PE-HD, ø 90 mm
Transition sleeve made of PE-HD, ø 90 / 110 mm
2 protective plugs
2 threaded rods M12
Fixing material

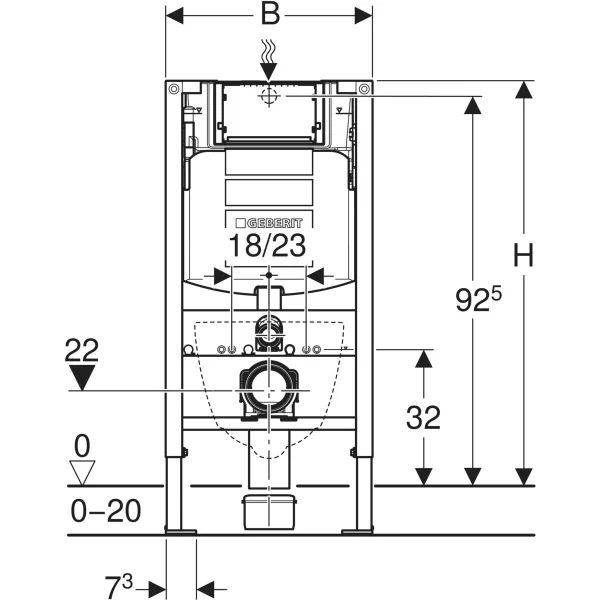

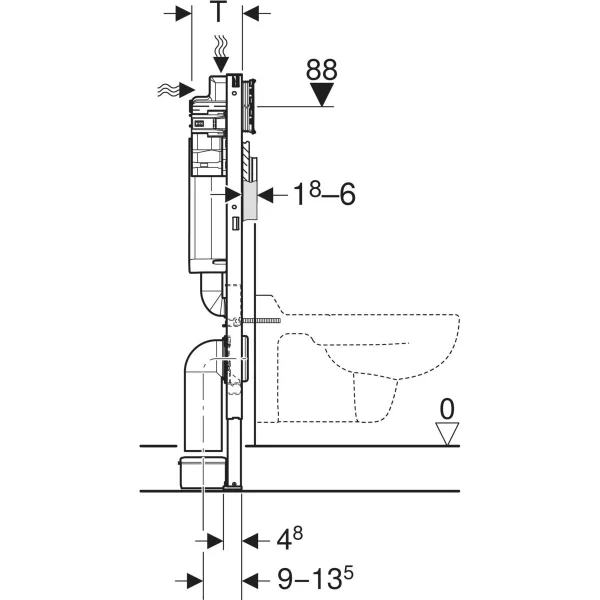

W: 50 cm
H: 97 cm
D: 12 cm
PU1: 1 pc.
