Protection class
IP43
Rated voltage
230 V AC
Operating voltage
18 V DC
Mains frequency
50-60 Hz
Battery type
Lithium-ion battery
Operating pressure
70000 kPa
Operating temperature
-20 - +60 °C
Operating temperature battery
-10 - +50 °C
Filling quantity of hydraulic oil
0.75 l
Sound pressure level
75 dB(A)
Vibration emission value max.
2.5 m/s²
Click on an application to search for other products
For driving hydraulic cylinders
Click on a property to search for other products
Hydraulic
With hydraulic quick coupling type CEJN 217
With USB 2.0 interface

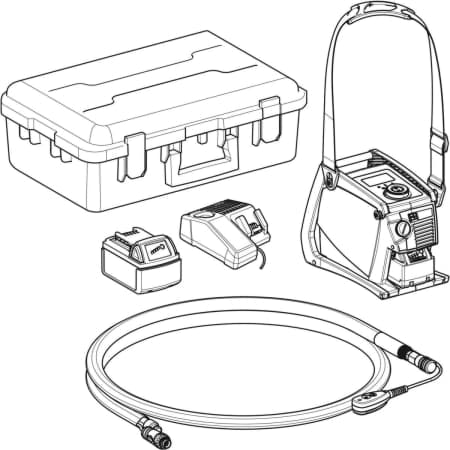

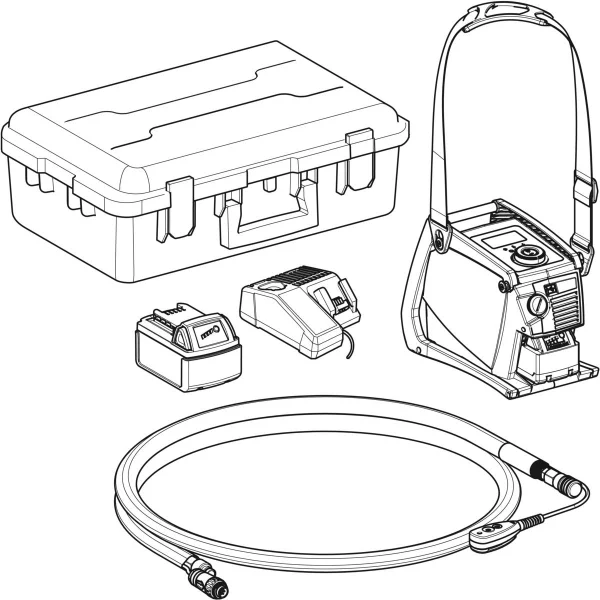

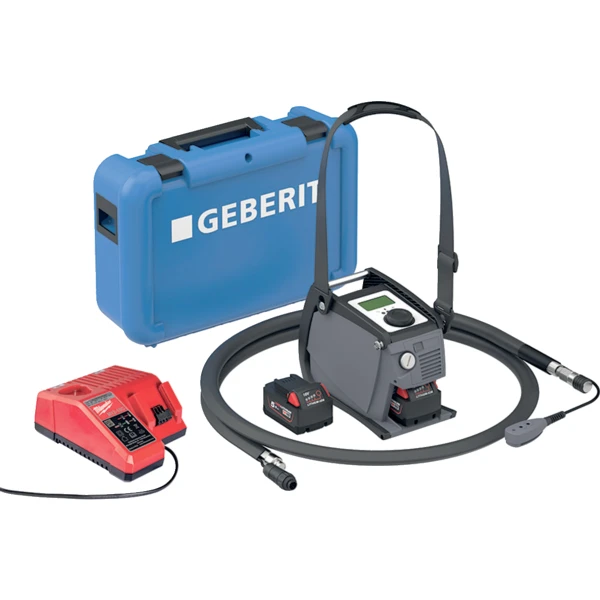

Hydraulic power pack 18 V DC
Hydraulic hose with hydraulic quick coupling type CEJN 217, length 1.5 m
Remote control

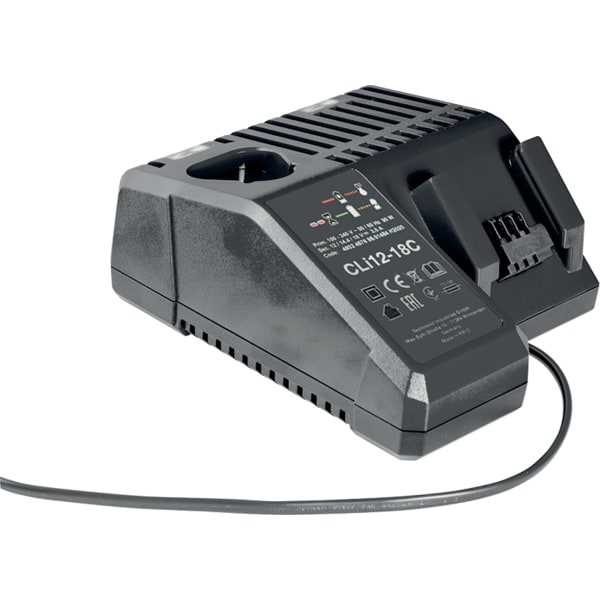

Battery charger
2 lithium-ion batteries 18 V / 5 Ah
USB stick with analysis software
Carrying case
Carrying strap
Compatibility: [2] / [4]
Protection class: III
Power consumption: 200 W
Weight main element: 12.5 kg
PU1: 1 pc.
