Protection class
IPX4
Rated voltage
110-240 V AC
Operating voltage
4.5 V DC
Mains frequency
50-60 Hz
Cable length
1 m
Operating pressure
50-1000 kPa
Recommended operating pressure with thermostatic mixer
0.5-5 bar
Recommended operating pressure with thermostatic mixer
50-500 kPa
Test pressure water max.
1600 kPa
Test pressure air / inert gas max.
300 kPa
Ambient temperature
1-40 °C
Storage temperature
-20 - +70 °C
Water temperature Setting range with thermostatic mixer
20-42 °C
Water temperature max.
60 °C
Short-term water temperature max.
90 °C
Flow rate at 3 bar
5 l/min
Minimum flow pressure for calculation flow rate
50 kPa
Calculation flow rate
0.07 l/s
Interval flushing Setting range
1-168 h
Interval flush Factory setting
24 h
Interval flush time Setting range
5-200 s
Interval flush time Factory setting
5 s
Material
Brass / plastic
Click on an application to search for other products
For drawing tap water
For public and semi-public areas
For installation in washbasins or washbasin tops
For connecting cold and hot water (only for models with mixer or thermostatic mixer)
For connecting cold or mixed water (only for model without mixer)
For use with stainless steel basin
Model without mixer suitable for combination with instantaneous water heaters, see technical data sheet "Washbasin taps with instantaneous water heaters"
Click on a property to search for other products
Faucet group I according to DIN 4109
Automatic flush release
Infrared user detection
IR sensor self-adjusting
Vandal-proof
Flow rate limitation by aerator
Temperature setting via mixer (only for model with mixer or thermostatic mixer)
Water not purely hot or purely cold adjustable (only for model with mixer or thermostatic mixer)
Thermostat in accordance with EN 1111 (only for model with thermostatic mixer)
Scalding protection by limiting the water temperature to 42 °C (only for model with thermostatic mixer)
Thermal disinfection possible in accordance with DVGW W 551
Power supply via mains adapter
Adjustable energy-saving mode
Water saving thanks to fast-reacting dual-jet sampling technology
Functions can be set and queried with Geberit service mobile phone
Device settings and operation with mobile device via integrated Bluetooth® interface
Compatible with Geberit Control App
Can be networked wirelessly with Geberit Gateway via GEBUS converter
Can be networked wirelessly with Geberit Gateway via Bluetooth®
Compatible with Geberit Connect
Adjustable water-saving programme
Interval flush programme adjustable
Continuous flush individually adjustable
Flush activation can be deactivated
With integrated backflow preventer
Functional unit with built-in basket filters

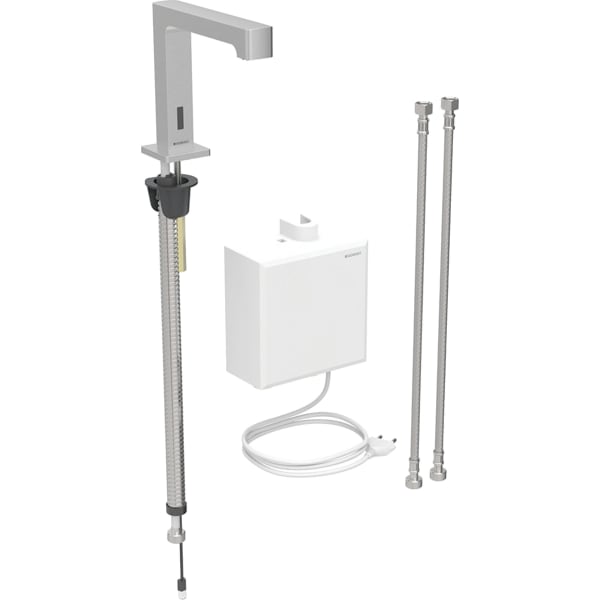

Washbasin tap with infrared sensor and connection hose
Surface-mounted function box with control electronics, function unit and power supply unit
Armoured hoses 3/8"
Spanner for aerator
Fastening material
Colour / finish: stainless steel / brushed look, easy-to-clean coating
Mixer: with thermostatic mixer
W: 5.5 cm
H: 16.1 cm
D: 19.5 cm
Power consumption: 0.1 W
PU1: 1 pc.
