Protection degree
IPX4
Nominal voltage
110–240 V AC
Mains frequency
50–60 Hz
Operating voltage
4.5 V DC
Operating pressure
0.5–10 bar
Recommended operating pressure with thermostatic mixer
0.5–5 bar
Recommended operating pressure with thermostatic mixer
50–500 kPa
Differentiated pressure CW/WW max.
1.5 bar
Test pressure, water max.
16 bar
Test pressure, air / inert gas max.
3 bar
Ambient temperature
1–40 °C
Storage temperature
-20 – +70 °C
Water temperature, adjustment range with thermostatic mixer
20–42 °C
Operating temperature, water max.
60 °C
Operating temperature, water, short-term max.
90 °C
Flow rate at 3 bar
5 l/min
Minimum flow pressure
0.5 bar
Calculated flow rate
0.07 l/s
Interval flush, adjustment range
1–168 h
Interval flush, factory setting
24 h
Interval flush time, adjustment range
5–200 s
Interval flush time, factory setting
5 s
Product material
Brass / plastic
Click on an application purpose to search more products
For extracting tap water
For public and semipublic areas
For installation in washbasins or washtops
For installation in Geberit frames for washbasins, deck-mounted tap with concealed function box
For installation in Geberit installation sets for electronic washbasin taps, deck-mounted, with concealed function box
For connecting cold and hot water (only for model with mixer or thermostatic mixer)
For connecting cold or mixed water (only for model without mixer)
For use with stainless steel bowls
Model without mixer suitable for combination with continuous flow heater, see technical data sheet "Washbasin taps with continuous flow heaters"
Click on a characteristic to search more products
Automatic flush actuation
Infrared user detection
Self-adjusting IR sensor
Vandal-resistant
Volume flow control via tap aerator
Temperature presetting via mixer (only for models with mixer or thermostatic mixer)
Not possible to set just hot water or just cold water (only for model with mixer or thermostatic mixer)
Thermostat according to EN 1111 (only for model with thermostatic mixer)
Scald protection by limiting the water temperature to 42 °C (only for models with thermostatic mixer)
Thermal disinfection according to DVGW W 551 possible
Power supply via power supply unit
Economy mode can be set
Water saving due to quick-response two-beam scanning technology
Functions can be set and queried with the Geberit Service Handy
Device settings and operation with mobile device via integrated Bluetooth® interface
Compatible with Geberit Control App
Wired networkable with Geberit gateway via GEBUS converter
Wirelessly connectable with Geberit Gateway via Bluetooth®
Compatible with Geberit Connect
Water saver program can be set
Interval flush program can be set
Continuous flush can be set individually
Flush actuation can be deactivated
With integrated check valve
Functional unit with built-in basket filters
Washbasin tap with IR sensor and connection hose
Control electronics
Functional unit
Power supply unit
Tap aerator key
Fastening material
Geberit frame for washbasin or installation set for Geberit wahsbasin tap
Cover plate for concealed function box
Colour / surface: stainless steel finish / brushed, easy-to-clean coated
Mixer: without mixer

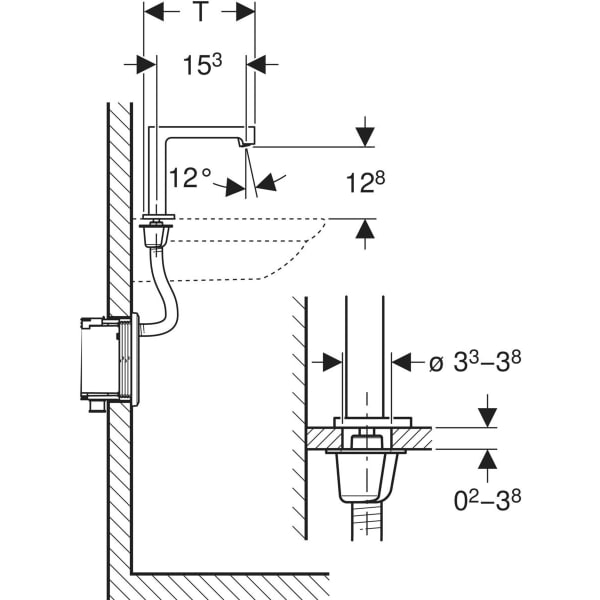

B: 5.5 cm
H: 16.1 cm
T: 19.5 cm
Power consumption: 0.1 W
