Protection degree
IPX4
Nominal voltage
230 V AC
Mains frequency
50 Hz
Power consumption standby max.
0.5 W
Flow pressure
0.5–10 bar
Operating temperature
5–40 °C
Water temperature, adjustment range
34–40 °C
Water temperature, factory setting
37 °C
Calculated flow rate
0.02 l/s
Minimum flow pressure for calculated flow rate
0.5 bar
Spray time
50 s
Load WC seat max.
150 kg
For gently cleaning the anal area with water
For convenient toilet use
Water heating via continuous flow heater
Anal shower with WhirlSpray shower technology
Spray arm with nozzle can be extended for anal area
Spray intensity can be set to five different levels
Oscillating spray (automatic forward and reverse motion of the spray arm)
Automatic pre- and postrinsing of the spray nozzle with fresh water
Descaling programme
Rimless WC ceramic appliance
Washdown WC with special glaze KeraTect
WC seat ring and WC lid with soft-closing mechanism
WC lid with SoftOpening

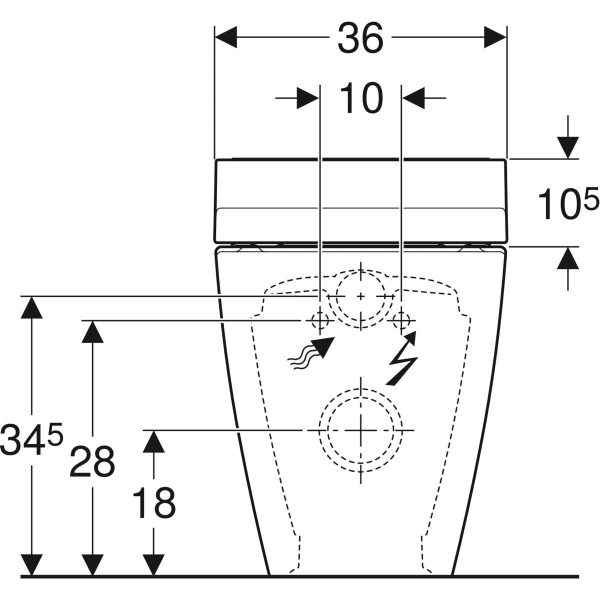

Water supply connection on the left, hidden behind the WC ceramic
Mains connection with flexible three-core sheathed cable, on the right side, hidden behind the WC ceramic
Approval in accordance with (DIN) EN 1717 / (DIN) EN 13077
Compatible with Geberit Home App
Shower water temperature can be adjusted via Geberit Home App
Continuous flow heater can be deactivated via Geberit Home App
Spray arm can be set to five different positions via Geberit Home App
Floor inlets of 6–28 cm from wall in combination with Geberit Monolith sanitary modules for floor-standing WC possible
Can be combined with Geberit Monolith sanitary module for floor-standing WC
Water supply connection set
Female socket for mains connection
Sound insulation set
Compensation pad for WC seat / ceramic appliance
Descaling agent, 125 ml
Spray shield
Connection set for WC, ø 90 mm
Fastening material
Colour / surface: WC ceramic appliance: white / KeraTect Design cover: white

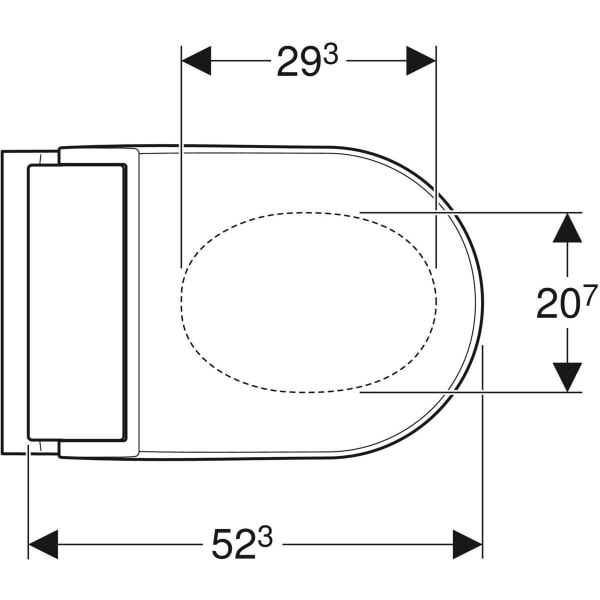

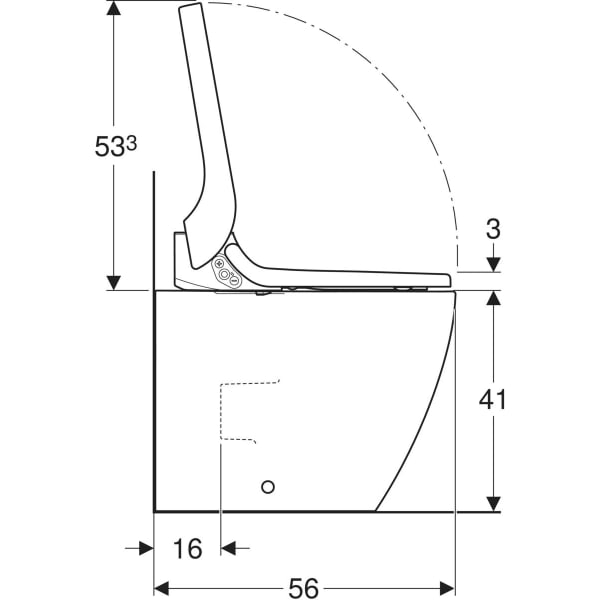

B: 36 cm
H: 44 cm
T: 56 cm
Protection class: I
Power consumption: 2000 W
